trueSpace7.61 Beta 8 Unofficial Update Version 9
Please test this prerelease
New Unofficial Update Instructions:
It is Required that you completely Uninstall and Install trueSpace7.61 Beta 8 to a clean directory
Install the PDF Manual for trueSpace (Optional but required before installing the Update)
Install the tS76_Vray1_54B8.exe (Optional but required before installing the Update)
If trueSpace is open, Close trueSpace
1.) Install the YafaRay v3.3.0 render engine
2.) Install the tS76PDF 'Manual for Caligari trueSpace' & tS76Video (Optional but required before installing the Update)
3.) Install tS76_Vray1_54B8.exe to C:\trueSpace761 (Optional but required before installing the Update)
4.) Install tS7.61B8.9.exe to C:\trueSpace761
Browse
[...] to where you installed C:\trueSpace761, select its folder and then the
[Extract] button
Select the
[Yes to All] button
5.) Open trueSpace
6.) Select the

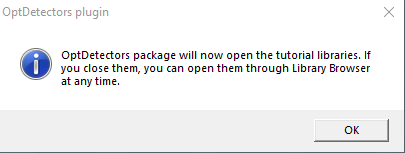

[OK] button in the OptDetectors plugin Information dialog
.
7.) Press your keyboard's
SHIFT CTRL R keys to Reset to Default Context
When trueSpace opens, select one of the layout tabs at the top
If Vray is installed:
8.) Press your keyboard's

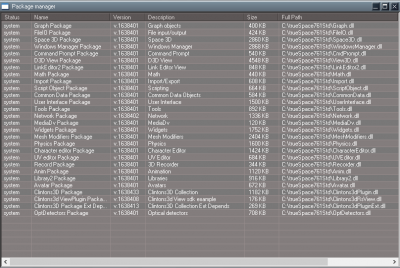

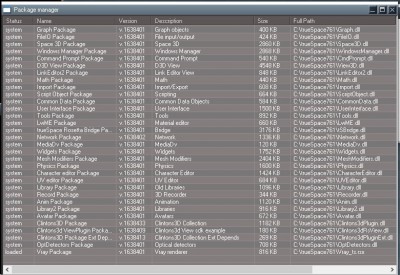

CTRL + F8 keys to open the Package Manager
Right click in the Package Manager and select Install
New...
Open C:\trueSpace761\Vray_ts.rsx

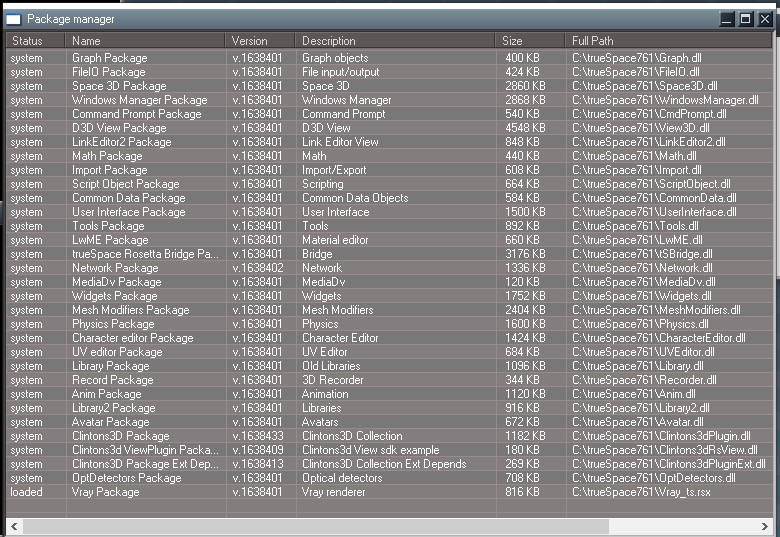

Right click in the Package Manager's Vray Package and select
Load
Close the Package Manager
9.) Close trueSpace

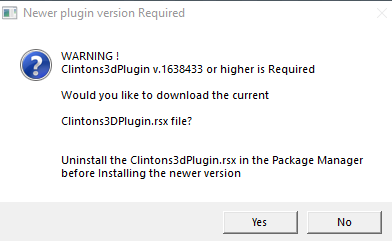

The included Clintons3dPlugin.dll v.1638433, Clintons3dPluginExt.dll v.1638413, Clintons3dRsView.dll v.1638409 and the OptDetectors.dll Author - Vladimir Sisolak, are in: C:\trueSpace761
WARNING: The init.js file Imports the above 4 plugins and should not be Installed from the Package Manager, including any other plugins with the same name that have the rsx extension
All scripts that check for these plugins with the rsx extension have been removed!
Updates:
CustomCommands
Bake Keyframes 'Update code'
Hierarchy/
MoveToScene
Add
Code: Select all
if(Node.SelectedCount() == 0) {
//System.Alert("Selection is required")
return;
}
if(!Node.ConExists(Node.FirstSelected(), 'WldMatrix')) {
//System.Alert("3D Object is required")
return;
}
Changed the Status Message(s)
Example:
Select the Destination Object - RMB before selection to Cancel, RMB to Commit, RMB on cube to Cancel
Note: You can also LMB select the Cube to Commit
UUCommands
Removed status message from FlattenObjects() function
Add: Close All Windows, Close All Toolbars, and Reset Toolbars scripts
Add
Snapshot
LMB - Set Render to File
Set - Frames to Render
Render
Uncheck - Reset Start Frame to render from the last Frame rendered
Note: Add addition Frames to Render from the last Frame rendered
Cancel- Stops the Activity and Closes the panel
Press your keyboard Esc key to Stop the Activity while rendering
Add
Vray Render to File
LMB - Set Render to File
Set - Frames to Render
Render
Uncheck - Reset Start Frame to render from the last Frame rendered
Note: Add addition Frames to Render from the last Frame rendered
Cancel- Stops the Activity and Closes the panel
Press your keyboard Esc key to Stop the Activity while rendering
Tip: Recommend that you set your render view's Ground to None
About: Snapshot & Vray Render to File
Allows you to render a sequence if images while Activities, Timers, and Scripts are running that do not interupt this rendering process, like scripts that call Alerts, Dialogs, etc...
Caution: If you do not Set Render to File first before Render, you might end up with images created in the last Saved file from trueSpace's File Menu - File/Save, which is the most Recent File
It is only necessary to Set Render to File on the first run or when you change the place to Render -> Savein: [Folder]
Removed Red(), Blue(), Gold, and Cam() functions

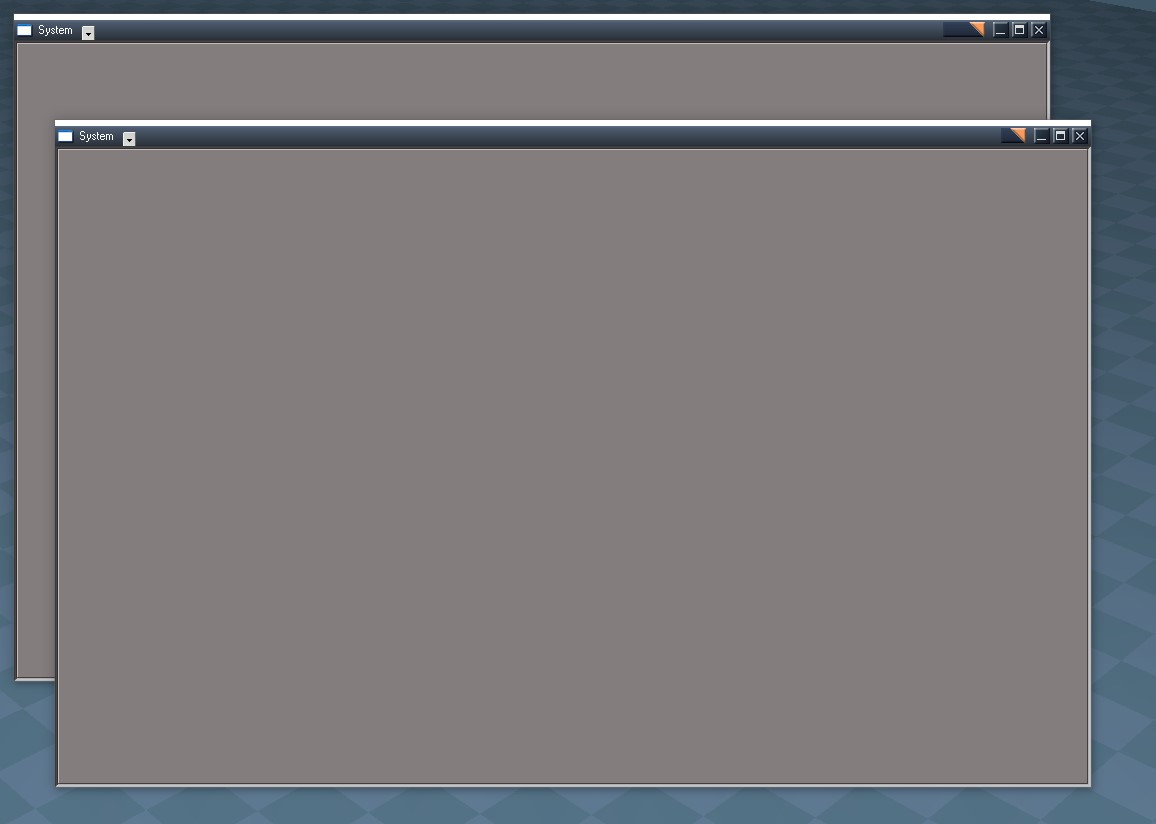

Note: Pressing Undo after running the above functions, opened another duplicate toolbar
For whatever reason it works as expected from script but not from a function
Add Red Toolbar, Blue Toolbar, Clintons Toolbar, and Camera Toolbar scripts
Shear/
Freeze
Add: Activity.Run(System.ThisOwner + '/Get Shear')
Active = false
Rs Main Libraries/
Postprocess
Scene Animator FX
Updated to use incorporated Snapshot 'Render to File'
Rs Main Libraries/
Objects - tS7.61 Update objects

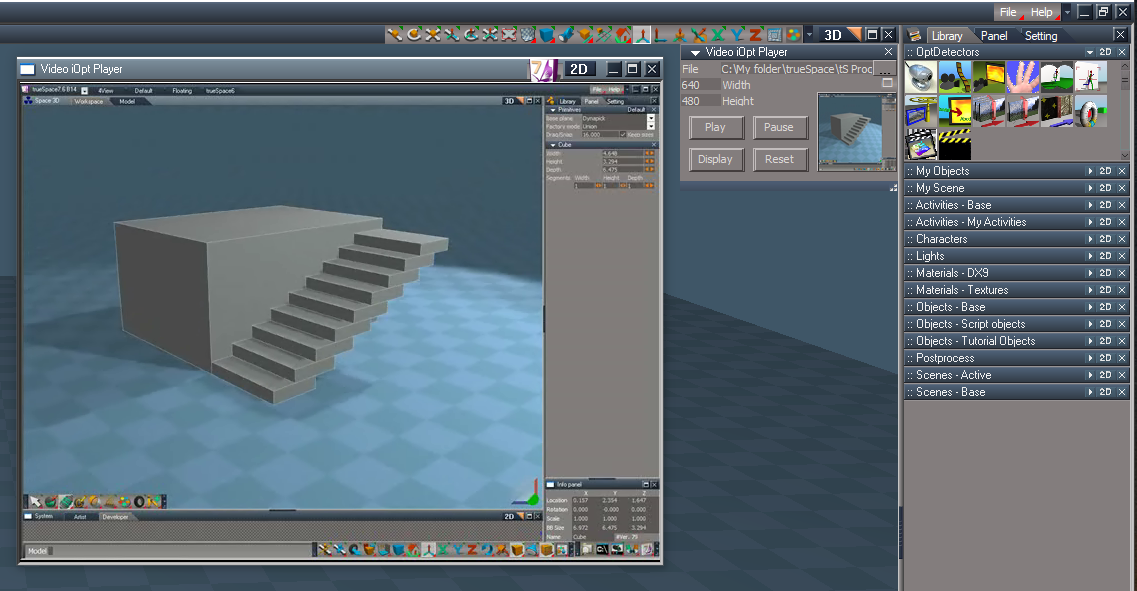

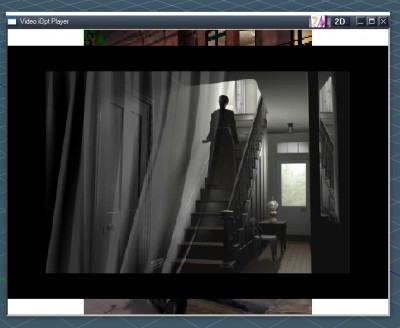

Sequence Player 'Update to use iOpti View'
Widgets/
Tools
Removed PickFaceWidget & PickVertexWidget

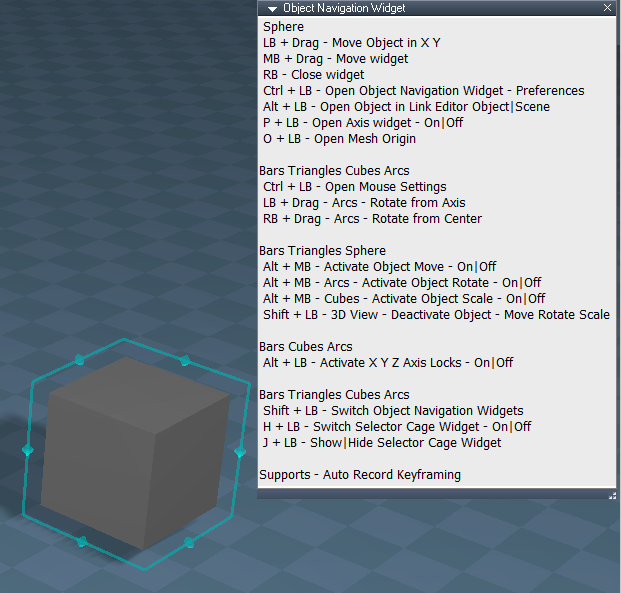

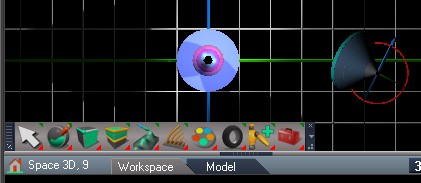

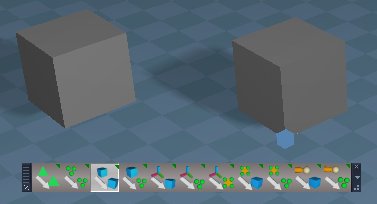

ObjectPickingWidget
Changed Sphere to Blue Cube and removed all other widget objects
- Object Snapping Widget.png (35.64 KiB) Viewed 1251 times
.
Toolbars/File Menu/Help/
About
Replaced Alert with Status Message

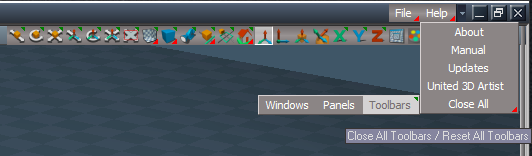

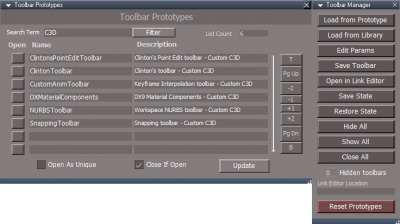

Close All
Add Windows and Toolbars buttons
.
Toolbars/
CustomToolbar
- CustomToolbar.png (10.02 KiB) Viewed 1251 times
Add Snapshot, Vray Render to File, and D3D Render
Note: Vray Render to File will not open unless there is a Vray scene
It will not Render unless Vray is the Offline Renderer
preobjects
Renderers 'Update code and messaging'
C3DReset 'Updated code'
Note: Reset to Default Context will Load Vray as the Offline Renderer, if Vray exist in the scene
Select a layout from the top Tabs
Main Directory
Add
Microsoft.VC80.CRT.manifest

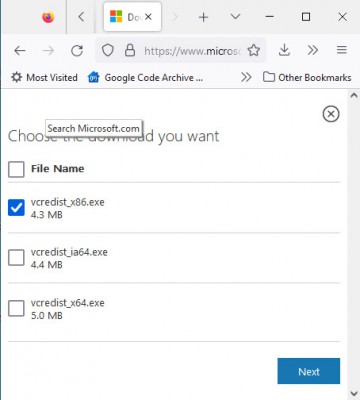

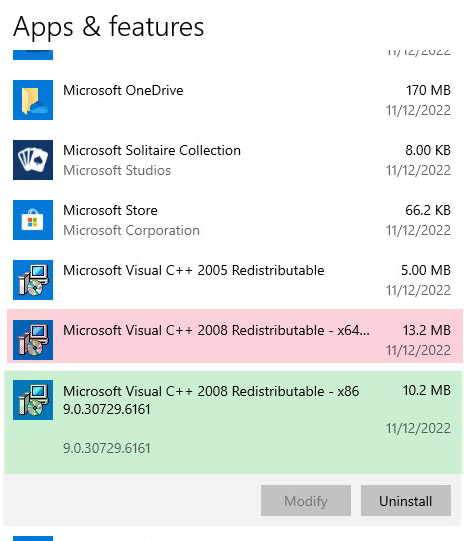

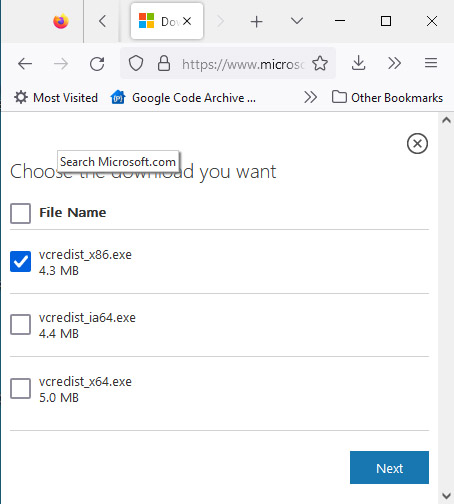

If the plugins do not Load, Download and Install the Microsoft Visual C++ 2008 Service Pack 1 Redistributable Package
https://www.microsoft.com/en-us/downloa ... x?id=26368
Removed due to update
