pugman 1 · Post by **pugman 1** » 01 Jan 2010, 16:03

Hi steinie ,this is what i meant from big church

tahnoak · Post by **tahnoak** » 01 Jan 2010, 16:45

Dude...you weren't kidding.

Tommy · Post by **Tommy** » 01 Jan 2010, 17:10

I'm really looking forward to see your work with the cathedral.

Maybee I should continue with my church for the challenge. vi ... ?f=5&t=890

LeonRegis · Post by **LeonRegis** » 01 Jan 2010, 19:02

Good luck with this HUGE project

Steinie · Post by **Steinie** » 01 Jan 2010, 20:30

Yikes!!!
(I'll be counting the windows!)

Good Luck.

pugman 1 · Post by **pugman 1** » 02 Jan 2010, 08:26

droped the roof down
puled up paripit wall added towers
i think the windows might take the
rest of the month

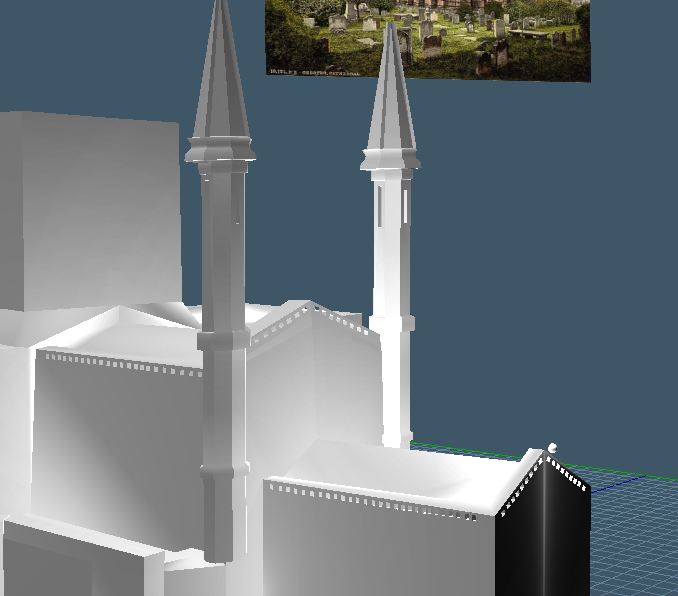

pugman 1 · Post by **pugman 1** » 02 Jan 2010, 11:46

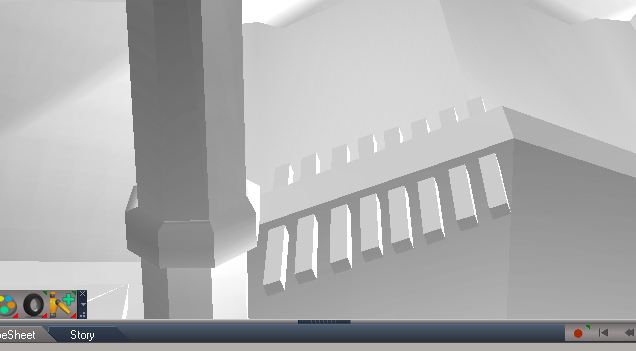

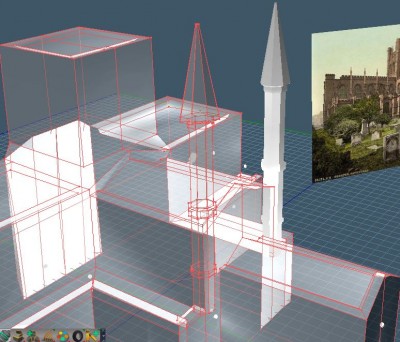

update, a bit more detail on the towers with the sweep tool
and alot of booleon sub . long way to go

tahnoak · Post by **tahnoak** » 02 Jan 2010, 12:12

Looks great though... how did you manage to keep the faces clean with all those booleans? I know when I do too many booleans using tS I get funky looking artifacts in wireframe but the renders turn out clean.

pugman 1 · Post by **pugman 1** » 02 Jan 2010, 12:29

Hi i added all streched cubes ,then booleon

pugman 1 · Post by **pugman 1** » 02 Jan 2010, 14:18

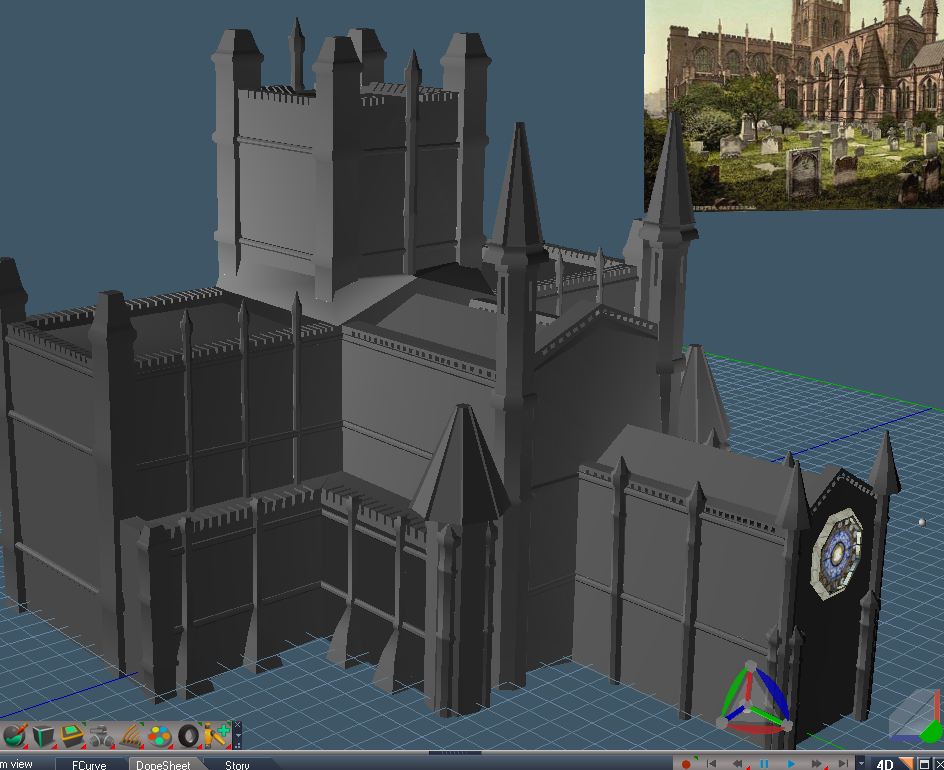

Hi all my little church is growing

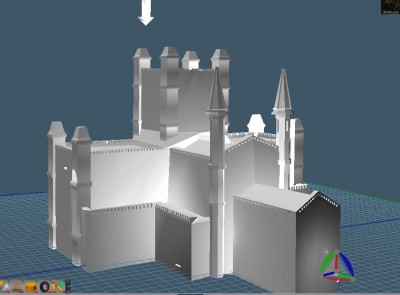

pugman 1 · Post by **pugman 1** » 02 Jan 2010, 16:10

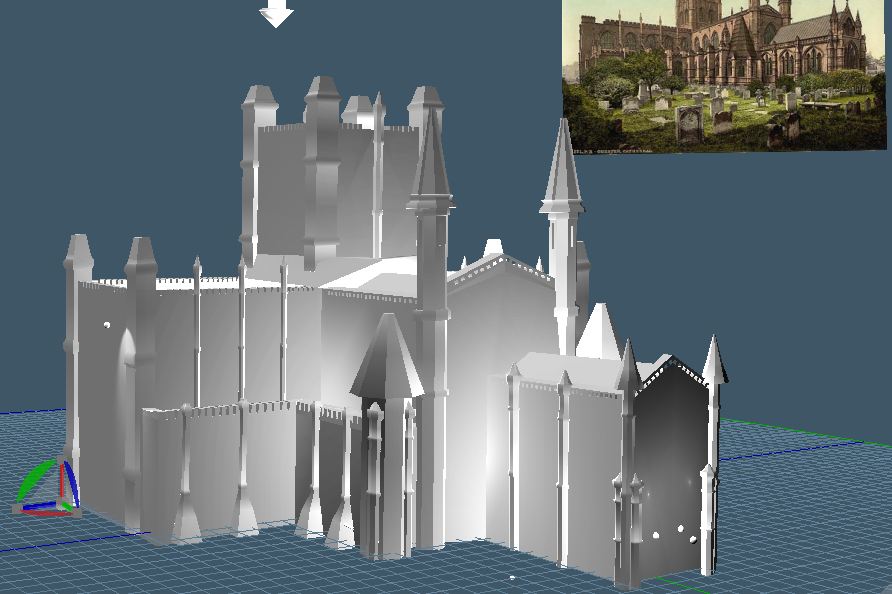

Added the rest of the towers ,now for the windows,
hope Steinie is nice to me

tahnoak · Post by **tahnoak** » 02 Jan 2010, 21:23

looking great...good job tackling that thing.

pugman 1 · Post by **pugman 1** » 03 Jan 2010, 08:42

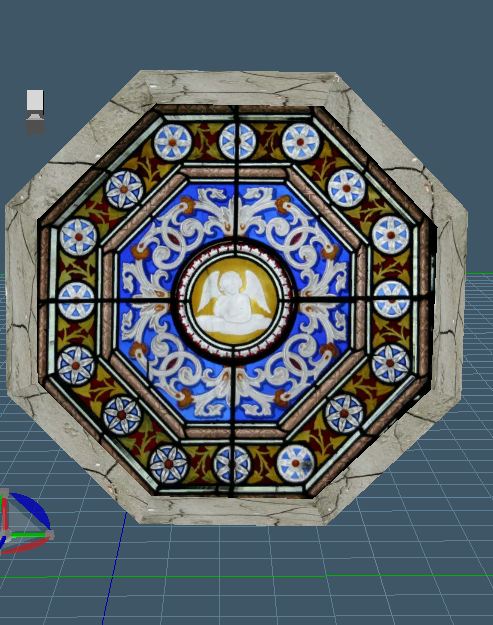

Here the main window for the back ,
simple cylinder radial 8 added texture from google

marcel · Post by **marcel** » 03 Jan 2010, 09:08

nice start!
you can also visit my old project of castle here:
vi ... =28&t=1173
or direct link:
http://crea-vision.fr/castle/html2/l_mur_88.htm
click at left, right or bottom of the images to move. I know it is hard to begin a big project but the pleasure grow month after month and it is difficult to stop! good luck for your castle

pugman 1 · Post by **pugman 1** » 03 Jan 2010, 10:24

Hi marcel, that is superb rendering. I am only
using ts work space for the whole thing.
my render is limited

nigec · Post by **nigec** » 03 Jan 2010, 12:05

cool pugman 1

have fun with all those windows!

pugman 1 · Post by **pugman 1** » 03 Jan 2010, 12:44

Thanks nigec. here a update, bit more detail
I have so far over 100 peices to this model tried model side
to glue and lost allot of faces ,model side does not like W7
i need to work out the encapsulate tool on workspace

pugman 1 · Post by **pugman 1** » 03 Jan 2010, 15:50

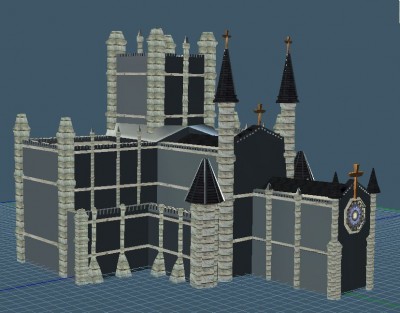

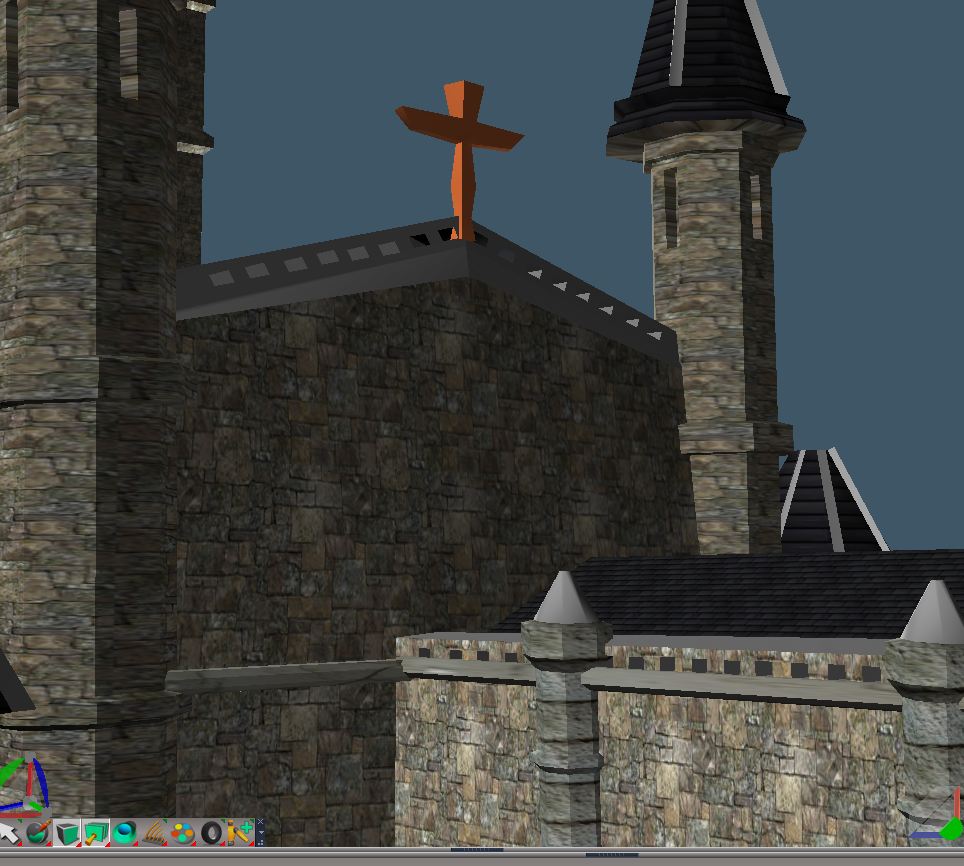

Added slate roof and a couple of crosses,
not sure if the stone towers look to heavy

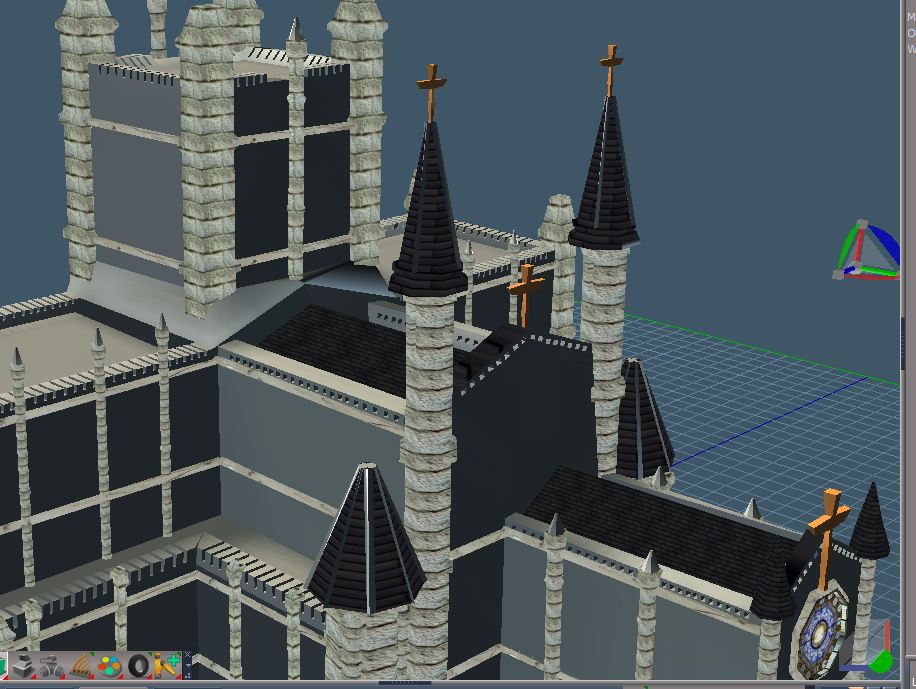

pugman 1 · Post by **pugman 1** » 03 Jan 2010, 15:59

here a better shot to see the stone work
please let me know what you think

Steinie · Post by **Steinie** » 03 Jan 2010, 22:50

Maybe the stones look too big and not to scale matching the
size of the structure. Nice work so far.

RAYMAN · Post by **RAYMAN** » 03 Jan 2010, 22:55

I agree with Steinie and ad that the stonetexture is to repetitive......
Otherwise cool work !
Peter

pugman 1 · Post by **pugman 1** » 04 Jan 2010, 15:35

Thanks for that advice , here a new texture
the last one for this, lots of probs with seems.
hopefully the repetitive will be lost when the
windows are in.
the windows

the face on the wall will not
let me add more geometry the way i need it.
first mistake the booleon work first before the windows,
now i must put them on the outside when they should be set in
bummer

pugman 1 · Post by **pugman 1** » 04 Jan 2010, 15:46

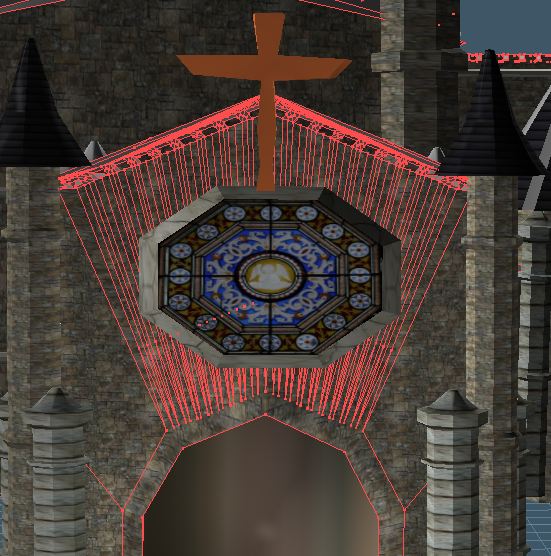

This is what booleon does to a face,then try and quad divide that mother
even when i deleted all extra geomentry and then quad divide i
got stange things like it was before.
So windows outside next next time first

pugman 1 · Post by **pugman 1** » 05 Jan 2010, 11:00

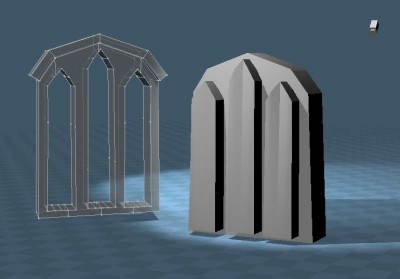

here another way to make a window.
first cube drag to shape anoter cube also
to shape, copy and booleon them out.
see sceen shot
Ralph

pugman 1 · Post by **pugman 1** » 05 Jan 2010, 11:17

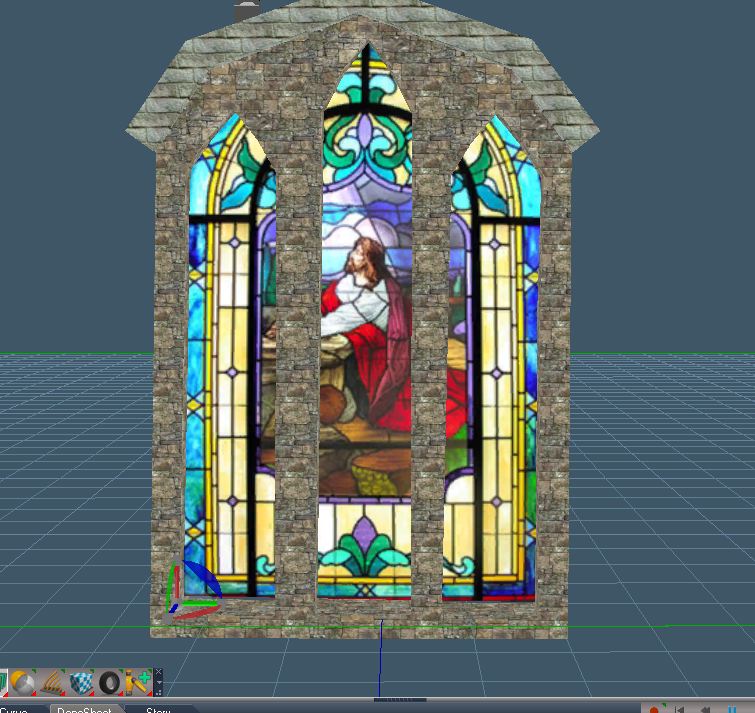

here the finished window with texture

Steinie · Post by **Steinie** » 05 Jan 2010, 12:39

Your doing great Pugman 1! When I saw the size of the
Church you wanted to do I didn't think you could finish it in time but you
are a ball of fire!

Your texture work is improving with every post. Go go go !!!

pugman 1 · Post by **pugman 1** » 05 Jan 2010, 12:52

Thanks so much Sreinie,
here with a few windows in, not sure if
the glaas, if i should have a diferent pic in
every window or the same ?

pugman 1 · Post by **pugman 1** » 05 Jan 2010, 15:58

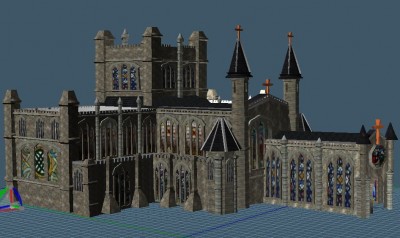

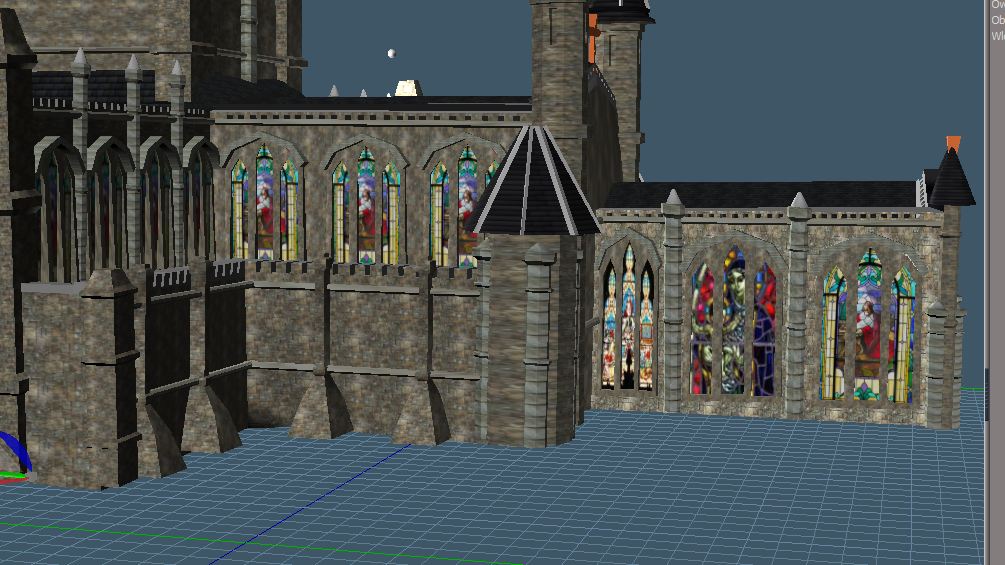

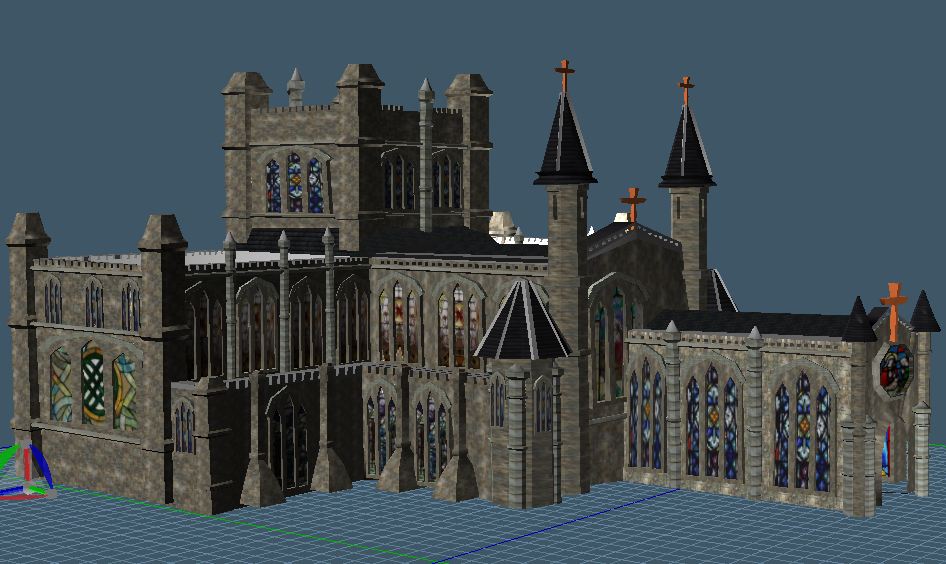

Here a update, windows in,still a long way to go
