clintonman · Post by **clintonman** » 24 Oct 2020, 03:35

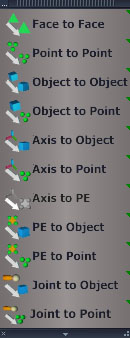

: wideStyleToolbar.jpg (31.28 KiB) Viewed 4677 times

New snapping scripts based around new picking widgets.
Face to Face - is updated from the standalone Face to face snapping script. This uses a new painting style selection widget, has button highlighting and a custom cursor. The old object vertex snapping scripts have been separated out into individual buttons for an easier user experience and also has custom enhancements. The Axis to PE button calls the point edit widget shortcuts of the Unofficial Update for snapping the axis to point edit selections.

New plugin version for Clintons3dPlugin.rsx v.1638423 is required. It contains the new paint select widgets.

http://clintons3d.com/plugins/truespace ... pping.html

the_ant · Post by **the_ant** » 24 Oct 2020, 06:13

That's what i'm waiting for the WorkSpace...

trueBlue · Post by **trueBlue** » 26 Oct 2020, 19:40

I agree, these are some great tools for SURE!
Thank you Clinton!

Is it possible to do a Point Edit Selection to Object Face using your PickFaceWidget2 widget?
Or maybe an option in the PE 2 Point?

clintonman · Post by **clintonman** » 27 Oct 2020, 21:43

trueBlue found a bug in the joint to points snapping. Fixed in this release.
Also fixed axis to point edit snapping, which would error if no point edit elements were selected.

installer uses new toolbar reset list provided by trueBlue.

trueBlue · Post by **trueBlue** » 29 Oct 2020, 10:24

Can you give an example on using the Joint to Object and why you would want to move a Joint to an Object?
I know how it works, just do not understand it's use.
TIA

clintonman · Post by **clintonman** » 29 Oct 2020, 14:45

trueBlue wrote: 29 Oct 2020, 10:24 Can you give an example on using the Joint to Object and why you would want to move a Joint to an Object?
I know how it works, just do not understand it's use.
TIA

Here's one application, centering on wheels and steering wheel of a car using the old object vertex snap script.

http://clintons3d.com/truespace/unreal3 ... _page2.htm

trueBlue · Post by **trueBlue** » 29 Oct 2020, 15:15

clintonman wrote: 29 Oct 2020, 14:45
trueBlue wrote: 29 Oct 2020, 10:24 Can you give an example on using the Joint to Object and why you would want to move a Joint to an Object?
I know how it works, just do not understand it's use.
TIA
Here's one application, centering on wheels and steering wheel of a car using the old object vertex snap script.

http://clintons3d.com/truespace/unreal3 ... _page2.htm

Thank you!
That is one huge project!
Never seen those pages before.

clintonman · Post by **clintonman** » 05 Jan 2021, 00:34

Update january 2021

updated to work with the new nurbs tools

trueBlue · Post by **trueBlue** » 05 Jan 2021, 15:16

Face to Face snapping is not working for me with NURBS patches & Curves and or 3D Objects to NURBS patches & Curves
After performing the snap, which does not work, the NURBS's LODMesh is selected

clintonman · Post by **clintonman** » 05 Jan 2021, 16:26

trueBlue wrote: 05 Jan 2021, 15:16 Face to Face snapping is not working for me with NURBS patches & Curves and or 3D Objects to NURBS patches & Curves
After performing the snap, which does not work, the NURBS's LODMesh is selected

I see the problem. The nurbs adjustment is only happening if the copy option is selected. The UU version should have the same problem since this latest update is just a copy of the quick snapping installs from a couple of weeks ago.

trueBlue · Post by **trueBlue** » 05 Jan 2021, 16:45

Yep, Copy works.

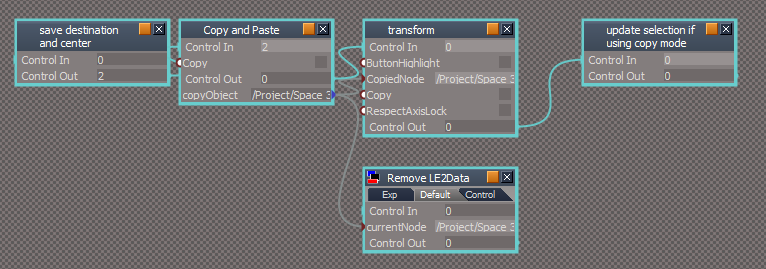

If possible, it would be great if you could remove the LE2Data cons

Code: Select all

	var currentNode = params.ConValue('currentNode');
	var selCount = Node.SelectedCount();

	if(selCount == 0) return;

	for(var i=0;i<selCount;i++) {
		var currentNode = Node.Selected(i);

		for(var j=0;j<12;j++)
			Node.ConRemove(currentNode, "LE2Data");

		var k = 1;
		while(Node.ConExists(currentNode, "LE2Data, " + k)) {
			Node.ConRemove(currentNode, "LE2Data, " + k);
			k++;
			//check for skipped number
			if(!Node.ConExists(currentNode, "LE2Data, " + k))
				k++;
		}

	}

clintonman · Post by **clintonman** » 05 Jan 2021, 16:59

Face to Face snapping for NURBS is fixed. Thanks.

clintonman · Post by **clintonman** » 05 Jan 2021, 17:25

trueBlue wrote: 05 Jan 2021, 16:45 Yep, Copy works.
If possible, it would be great if you could remove the LE2Data cons
...

As requested, Added LE arrange code to the copied nodes.

clintonman · Post by **clintonman** » 19 Aug 2021, 21:02

Update August 19 2021

made the installer version up to date with the Unofficial Update version of the scripts

uses fewer undos
updated the icon image
status message compatible

also added 2 requirements:
Widget Scripts and Status Message scripts are required
Status Message is already included in the Unofficial Updates

http://clintons3d.com/plugins/truespace ... getscripts

http://clintons3d.com/plugins/truespace ... tusmessage

http://clintons3d.com/plugins/truespace ... pping.html

trueBlue · Post by **trueBlue** » 24 Jul 2023, 13:17

There is an issue with the Snapping toolbars and widgets!
If you start one of the Snapping tools, and you use any other trueSpace tool including other Snapping tools

I finally figured out how to check the state of all of these Snapping tools and close them

Code: Select all

	if(Node.Exists('/Widgets/Active Widgets Layer2/Active Widget/TrianglePickCursor') || Node.Exists('/Widgets/Active Widgets Layer2/Active Widget/PointPickCursor') || Node.Exists("/Widgets/Edit/Default context/Select/ObjectSelectCursor") && Node.Exists('Scripts/CustomCommands/SnappingScripts/toolbarScripts/resetState')) {
	ScriptObject.Execute('Scripts/CustomCommands/SnappingScripts/toolbarScripts/resetState')
	}

Do you think you can update these scripts to check if any of these tools are in use first?
Edit: I have fixed all of the Snapping scripts by adding a check to these scripts:

Code: Select all

"/Scripts/CustomCommands/SnappingScripts/facetoface/save obj ref"
"/Scripts/CustomCommands/SnappingScripts/pointsToPoints/start"
"/Scripts/CustomCommands/SnappingScripts/objectToObject/start/start2"
"/Scripts/CustomCommands/SnappingScripts/objectToPoints/start"
"/Scripts/CustomCommands/SnappingScripts/pivotToObject/start/start2"
"/Scripts/CustomCommands/SnappingScripts/pivotToPoints/start/start2"
"/Scripts/CustomCommands/SnappingScripts/pivotToPE/start"
"/Scripts/CustomCommands/SnappingScripts/peToObject/start"
"/Scripts/CustomCommands/SnappingScripts/peToPoints/start"
"/Scripts/CustomCommands/SnappingScripts/jointToObject/start"
"/Scripts/CustomCommands/SnappingScripts/jointToPoints/start"

Let me know if you think there needs to be additional code
It seems to work for me in all cases

clintonman · Post by **clintonman** » 24 Jul 2023, 21:29

trueBlue wrote: 24 Jul 2023, 13:17 There is an issue with the Snapping toolbars and widgets!
If you start one of the Snapping tools, and you use any other trueSpace tool including other Snapping tools
Snapping widget BUG.png

I finally figured out how to check the state of all of these Snapping tools and close them
Code: Select all
	if(Node.Exists('/Widgets/Active Widgets Layer2/Active Widget/TrianglePickCursor') || Node.Exists('/Widgets/Active Widgets Layer2/Active Widget/PointPickCursor') || Node.Exists("/Widgets/Edit/Default context/Select/ObjectSelectCursor") && Node.Exists('Scripts/CustomCommands/SnappingScripts/toolbarScripts/resetState')) {
	ScriptObject.Execute('Scripts/CustomCommands/SnappingScripts/toolbarScripts/resetState')
	}
Do you think you can update these scripts to check if any of these tools are in use first?
Edit: I have fixed all of the Snapping scripts by adding a check to these scripts:
Code: Select all
"/Scripts/CustomCommands/SnappingScripts/facetoface/save obj ref"
"/Scripts/CustomCommands/SnappingScripts/pointsToPoints/start"
"/Scripts/CustomCommands/SnappingScripts/objectToObject/start/start2"
"/Scripts/CustomCommands/SnappingScripts/objectToPoints/start"
"/Scripts/CustomCommands/SnappingScripts/pivotToObject/start/start2"
"/Scripts/CustomCommands/SnappingScripts/pivotToPoints/start/start2"
"/Scripts/CustomCommands/SnappingScripts/pivotToPE/start"
"/Scripts/CustomCommands/SnappingScripts/peToObject/start"
"/Scripts/CustomCommands/SnappingScripts/peToPoints/start"
"/Scripts/CustomCommands/SnappingScripts/jointToObject/start"
"/Scripts/CustomCommands/SnappingScripts/jointToPoints/start"
Let me know if you think there needs to be additional code
It seems to work for me in all cases

Looks good to me.
The vertex paint panel "start painting"also needs your fix.
and the mesh origin panel "set snap point widget" button.
Also the dimensions panel "linear" and "angle" buttons.
and the nurbs draw curve tool

trueBlue · Post by **trueBlue** » 25 Jul 2023, 13:13

clintonman wrote: 24 Jul 2023, 21:29
trueBlue wrote: 24 Jul 2023, 13:17 There is an issue with the Snapping toolbars and widgets!
If you start one of the Snapping tools, and you use any other trueSpace tool including other Snapping tools
Snapping widget BUG.png

I finally figured out how to check the state of all of these Snapping tools and close them
Code: Select all
	if(Node.Exists('/Widgets/Active Widgets Layer2/Active Widget/TrianglePickCursor') || Node.Exists('/Widgets/Active Widgets Layer2/Active Widget/PointPickCursor') || Node.Exists("/Widgets/Edit/Default context/Select/ObjectSelectCursor") && Node.Exists('Scripts/CustomCommands/SnappingScripts/toolbarScripts/resetState')) {
	ScriptObject.Execute('Scripts/CustomCommands/SnappingScripts/toolbarScripts/resetState')
	}
Do you think you can update these scripts to check if any of these tools are in use first?
Edit: I have fixed all of the Snapping scripts by adding a check to these scripts:
Code: Select all
"/Scripts/CustomCommands/SnappingScripts/facetoface/save obj ref"
"/Scripts/CustomCommands/SnappingScripts/pointsToPoints/start"
"/Scripts/CustomCommands/SnappingScripts/objectToObject/start/start2"
"/Scripts/CustomCommands/SnappingScripts/objectToPoints/start"
"/Scripts/CustomCommands/SnappingScripts/pivotToObject/start/start2"
"/Scripts/CustomCommands/SnappingScripts/pivotToPoints/start/start2"
"/Scripts/CustomCommands/SnappingScripts/pivotToPE/start"
"/Scripts/CustomCommands/SnappingScripts/peToObject/start"
"/Scripts/CustomCommands/SnappingScripts/peToPoints/start"
"/Scripts/CustomCommands/SnappingScripts/jointToObject/start"
"/Scripts/CustomCommands/SnappingScripts/jointToPoints/start"
Let me know if you think there needs to be additional code
It seems to work for me in all cases
Looks good to me.
The vertex paint panel "start painting"also needs your fix.
and the mesh origin panel "set snap point widget" button.
Also the dimensions panel "linear" and "angle" buttons.
and the nurbs draw curve tool

Added to your list and several other scripts including the Global Function Set
function OpenFloatingPanel()
This covers a lot of ground in the UU9
Also, the Popups/OpenToolbars script
