Can anyone help with this problem that is kinda reminiscent of 6.6.
Here are 2 screenshot of a model made in workSpace with the bridge off. All objects are primitives, copied rotated scaled as necessary.
I am trying to encapsulate the objects into 1 model so i can put into file with other floors of the building, 3d encapsulate results in the second screenshot, looks quite good but not what i intended!
I have tried flattening history before encapsulating, i have tried normalising axis location while all objects are selected. i suspect i have built the model wrong. Any tips on avoiding this problem in the future? (yeah yeah switch to another 3d program etc...)
TIA
oldProblem
-
Saul
- Senior Chief Petty Officer
- Posts: 308
- Joined: 22 May 2009, 16:50
oldProblem
- Attachments
-

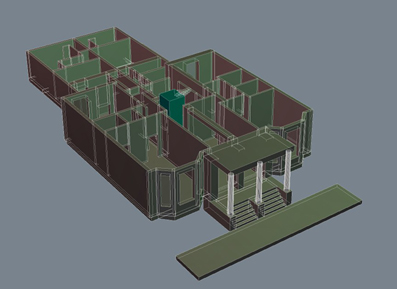

- before.jpg (61.38 KiB) Viewed 2837 times
-
- After
- sfter.jpg (105.16 KiB) Viewed 2836 times
-
Saul
- Senior Chief Petty Officer
- Posts: 308
- Joined: 22 May 2009, 16:50
Re: oldProblem
OK sorted it!
Flatten history and regular encapsulate (not 3d encapsulate) does it. Have to re-apply scripts for proximity opening of doors etc 'cos of the flatten history but bit early for that sort of stuff anyway!
Flatten history and regular encapsulate (not 3d encapsulate) does it. Have to re-apply scripts for proximity opening of doors etc 'cos of the flatten history but bit early for that sort of stuff anyway!
-
Steinie
- Captain
- Posts: 2958
- Joined: 21 May 2009, 17:38
- Type the number ten into the box: 10
Re: oldProblem
I've seen this problem in the past too so thanks for the answer Saul.
-
bitkar
- Captain
- Posts: 2089
- Joined: 16 Mar 2010, 07:14
- Type the number ten into the box: 0
- Location: Czech Republic
Re: oldProblem
use model side for me ;) I just couldnt help myself.Any tips on avoiding this problem in the future?
Good that you resolved it.
Michal aka bitkar
tS freak since tS2 (1998) and forever (tS7.61 modeler)
