Shear Tool
First release of a new shear tool for truespace.

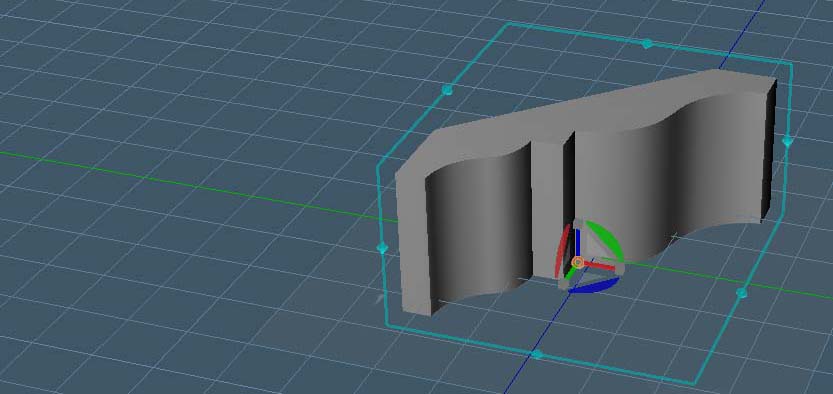

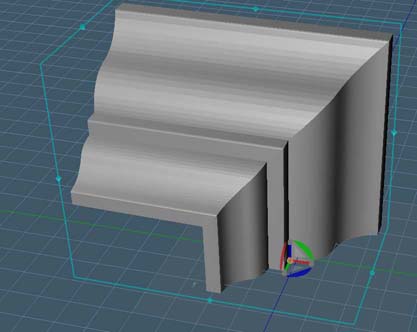

The images below show one use for it. The top face was sheared and then extuded to the left.
The steps are shown on the web page.
https://clintons3d.com/plugins/truespac ... rtool.html
