Learned a lot about matrix math in the process. openGL verses DirectX.
It has the ability to add to and subtract from the selection like the edit tools.

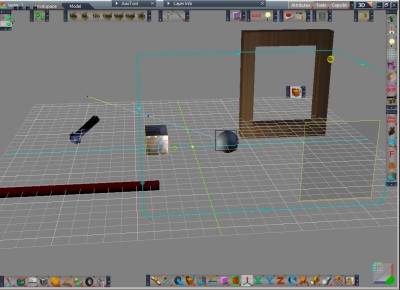

Visually it will be easier to see what is selected with the highlight on as shown in the image.
It uses the object's location as the selection point.
It works in all views seamlessly.
One thing I noticed is group objects must be created at 0,0,0 and moved or the rectangle will find it at 0,0,0 not where it is.
Here is the plugin, it only works in 761b or std.
Run the RectSelect.msi.
A folder will be created in your trueSpace761 with the RectSelect.Rsx and Rectangle Select installer.RsObj.
Install the RectSelect.Rsx then bring the Rectangle Select installer.RsObj into truespace and run script. You will find a new toolbar with the icon to activate the widget. Right click on screen to deactivate. enjoy!

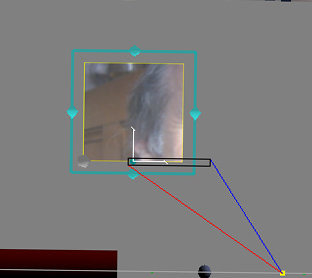

- red and blue lines are just for testing purposes, will not be in the release
- select from flattened axis.jpg (24.1 KiB) Viewed 246 times
- notice the rectangle is at zero xyz to select the group of cylinders which were created where you see them. The group of cylinders beside them can be selected in the normal way.
