How to use Shadowcatcher in TS7.6?

Post by Hicks » 03 May 2010, 16:42

Hi,

In TrueSpace 7.51 and 7.6, there is a function called 'Shadowcatcher' (

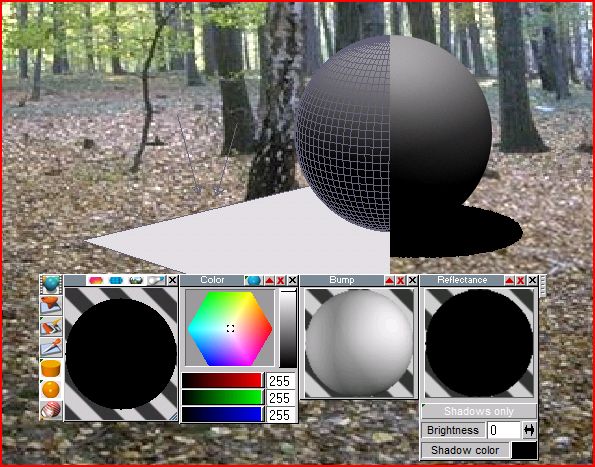

http://cdn.caligari.com/proteam/proTeam ... atcher.wmv" ). When I test the function, I use shadow catcher shader for the plane and a photo for the background, but the plane can not be hided in rendering (see the picture below), how can I hide the plane as the effect in the course video?

Re: How to use Shadowcatcher in TS7.6?

Post by marcel » 03 May 2010, 17:09

The plane need to have a white color to be invisible. With shadowcatcher the color of the plane is like an alpha map. Also use the color of the shadow to change the intensity of the shadow on the ground.
ps: don't post the same question on several topic.
