Cannot edit SDS

Post by generalistic »

I have applied SDS to an object but cannot edit the model in "basic" level: edit the original faces.

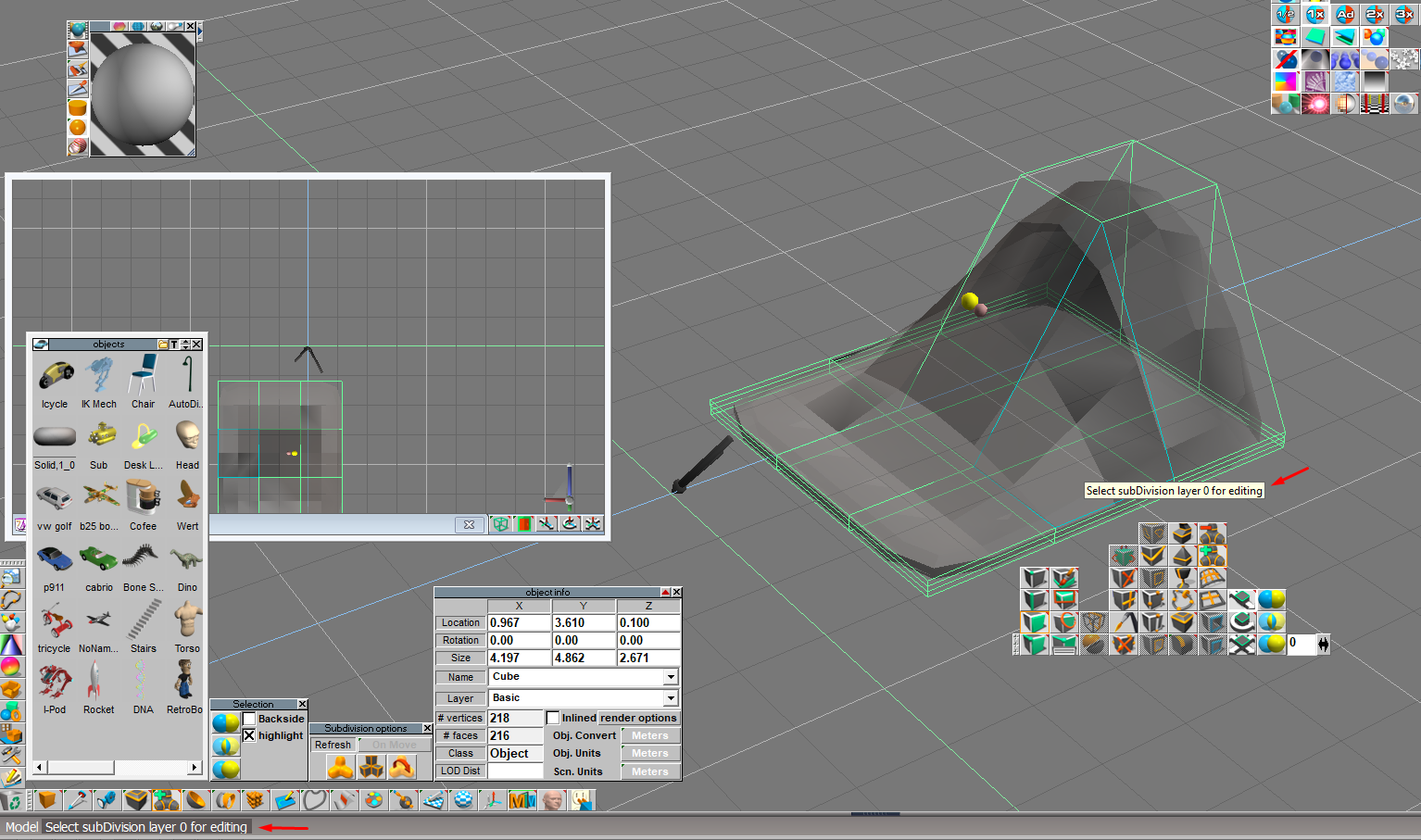

a tooltip shows: "select subDivision layer 0 for editing" but I AM in layer 0, I have not added any layer?
please any help much appreciated :bananasad:
Attachments
User avatar
trueBlue
Captain
Posts: 5548
Joined: 06 Jul 2009, 22:50
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by trueBlue »

Maybe this will help:
viewtopic.php?p=65814#p65814

.

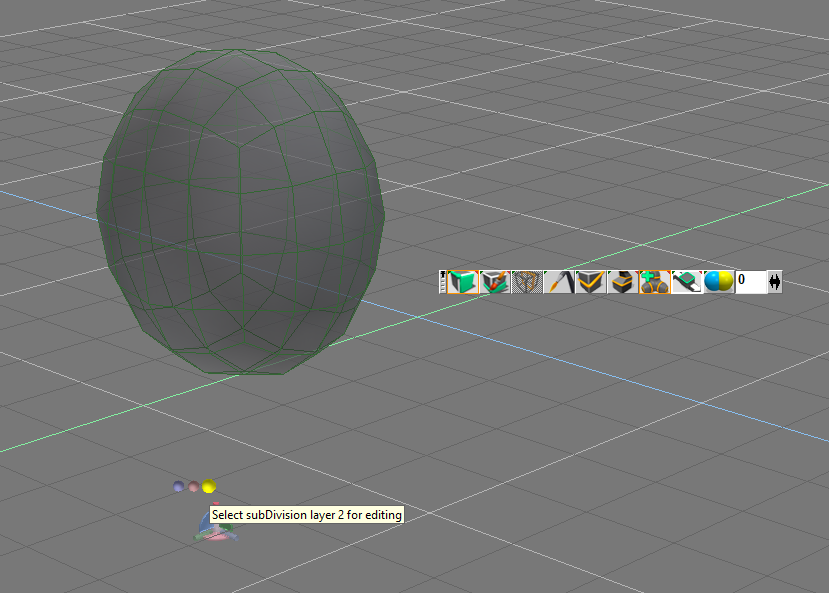

SDS Levels.png
The 3 colored Spheres are SDS Level 0, 1, 2

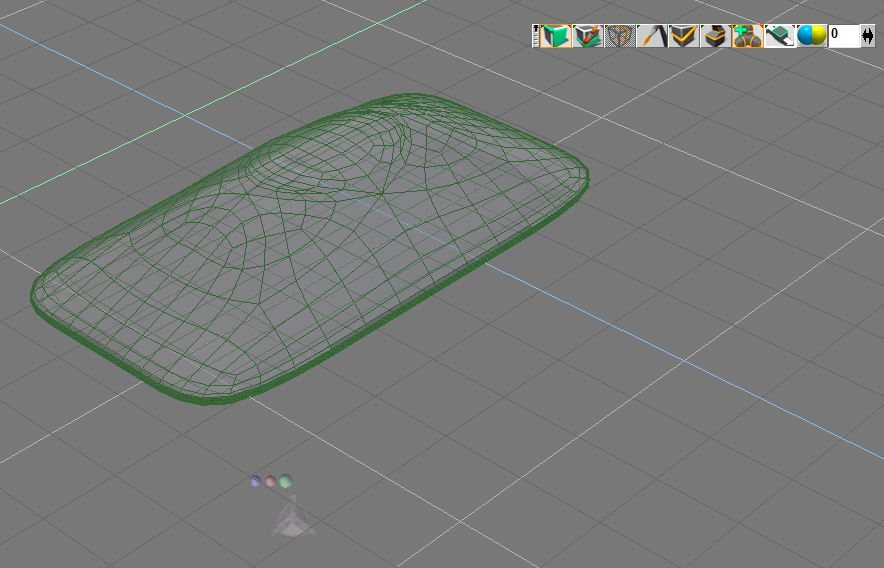

I have selected Level 2 and mesh turns green
User avatar
generalistic
Petty Officer Third Class
Posts: 16
Joined: 06 Jun 2024, 00:47
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by generalistic »

in your screenshot I can see you have the 3 colored Spheres!
I turned off "3d controls" so I don´t have them...
now I can access the faces of the model, but only the top most level SDS :shock:
how can I access the lowest level?

thank you!
Attachments
User avatar
trueBlue
Captain
Posts: 5548
Joined: 06 Jul 2009, 22:50
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by trueBlue »

In my simple example, I have 3 Levels of SDS
The only way I know how to Edit a SDS Level is with the 3D Control
I can select any of the colored Spheres to Point Edit the SDS Level

Share your scn, and I. and or somebody else, can take look?
User avatar
generalistic
Petty Officer Third Class
Posts: 16
Joined: 06 Jun 2024, 00:47
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by generalistic »

You mean I share the scene file? no problem. Although the issue is with the GUI I think...
Attachments
model_1.scn
(10.63 KiB) Downloaded 46 times
User avatar
trueBlue
Captain
Posts: 5548
Joined: 06 Jul 2009, 22:50
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by trueBlue »

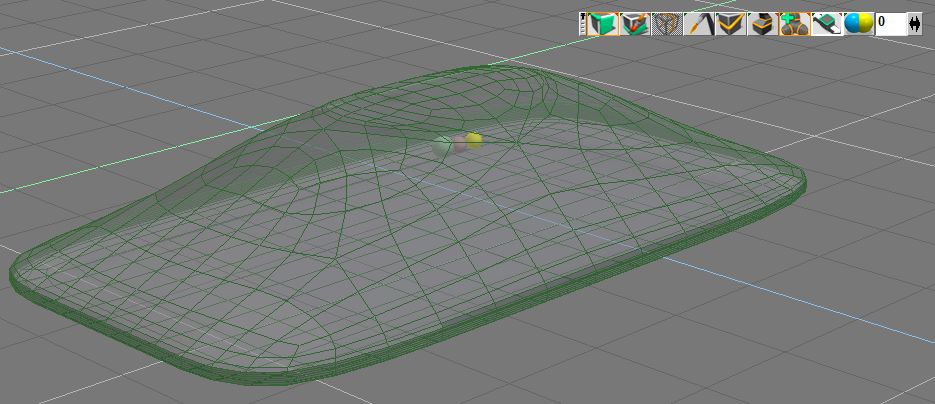

Using the SDS Spheres, which is a Model Widget, I am able to select all 3 SDS Levels

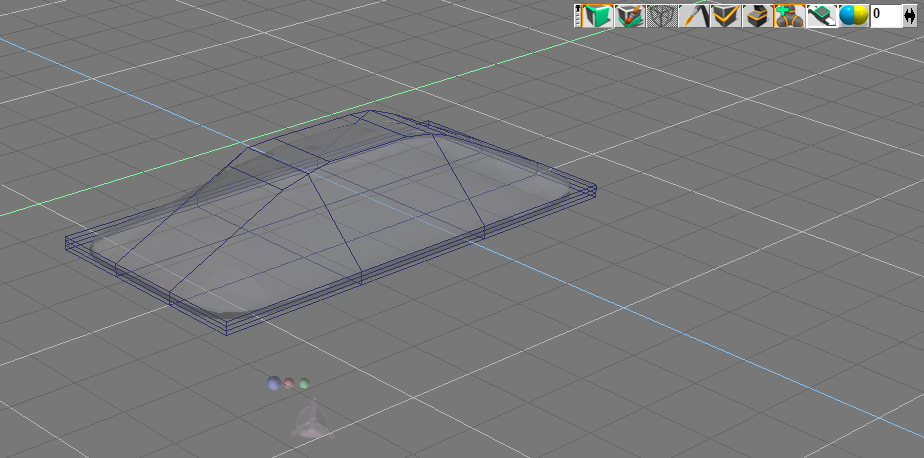

Level 0.png

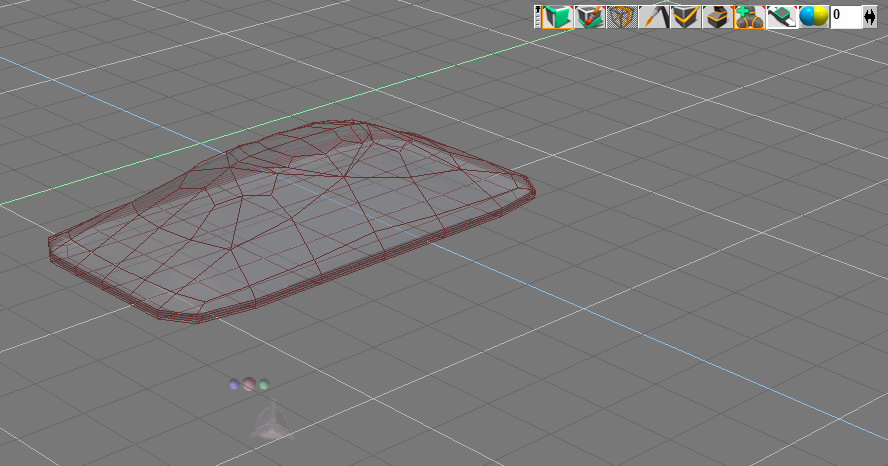

Level 1.png

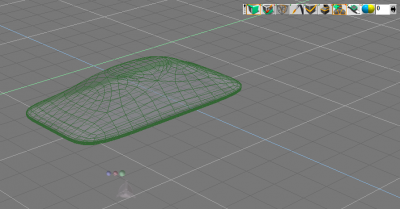

Level 2.png
User avatar
generalistic
Petty Officer Third Class
Posts: 16
Joined: 06 Jun 2024, 00:47
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by generalistic »

can you please tell me what your settings are?
I cannot see the spheres in my version.
User avatar
trueBlue
Captain
Posts: 5548
Joined: 06 Jul 2009, 22:50
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by trueBlue »

I think what your experiencing, is the SDS widget is hidden inside your object
In this case, you are not able to select the SDS widget Spheres and or Point Edit the object
I set your object to Draw as Wire to see the hidden SDS widget
SDS widget is hidden inside the object.png
Edit: Cross Post
User avatar
trueBlue
Captain
Posts: 5548
Joined: 06 Jul 2009, 22:50
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by trueBlue »

generalistic wrote: 14 Jun 2024, 19:40 can you please tell me what your settings are?
I cannot see the spheres in my version.
You have to have 3D Controls enabled in Preferences
User avatar
generalistic
Petty Officer Third Class
Posts: 16
Joined: 06 Jun 2024, 00:47
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by generalistic »

trueBlue wrote: 13 Jun 2024, 13:02 Maybe this will help:
viewtopic.php?p=65814#p65814
but in the link to the post you provided, it suggested to turn off "3D control", otherwise the spheres are inside the object and cannot be accessed anyway.
User avatar
trueBlue
Captain
Posts: 5548
Joined: 06 Jul 2009, 22:50
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by trueBlue »

generalistic wrote: 14 Jun 2024, 19:55
trueBlue wrote: 13 Jun 2024, 13:02 Maybe this will help:
viewtopic.php?p=65814#p65814
but in the link to the post you provided, it suggested to turn off "3D control", otherwise the spheres are inside the object and cannot be accessed anyway.
Nope, it was suggested to Toggle the 3D Controls
User avatar
generalistic
Petty Officer Third Class
Posts: 16
Joined: 06 Jun 2024, 00:47
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by generalistic »

ok so I turned it back on. now the spheres are visible (as it was by default) by I cannot select them. or is there a hotkey? Also, the original problem remains: I cannot select the edges of the model :(
Attachments
User avatar
trueBlue
Captain
Posts: 5548
Joined: 06 Jul 2009, 22:50
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by trueBlue »

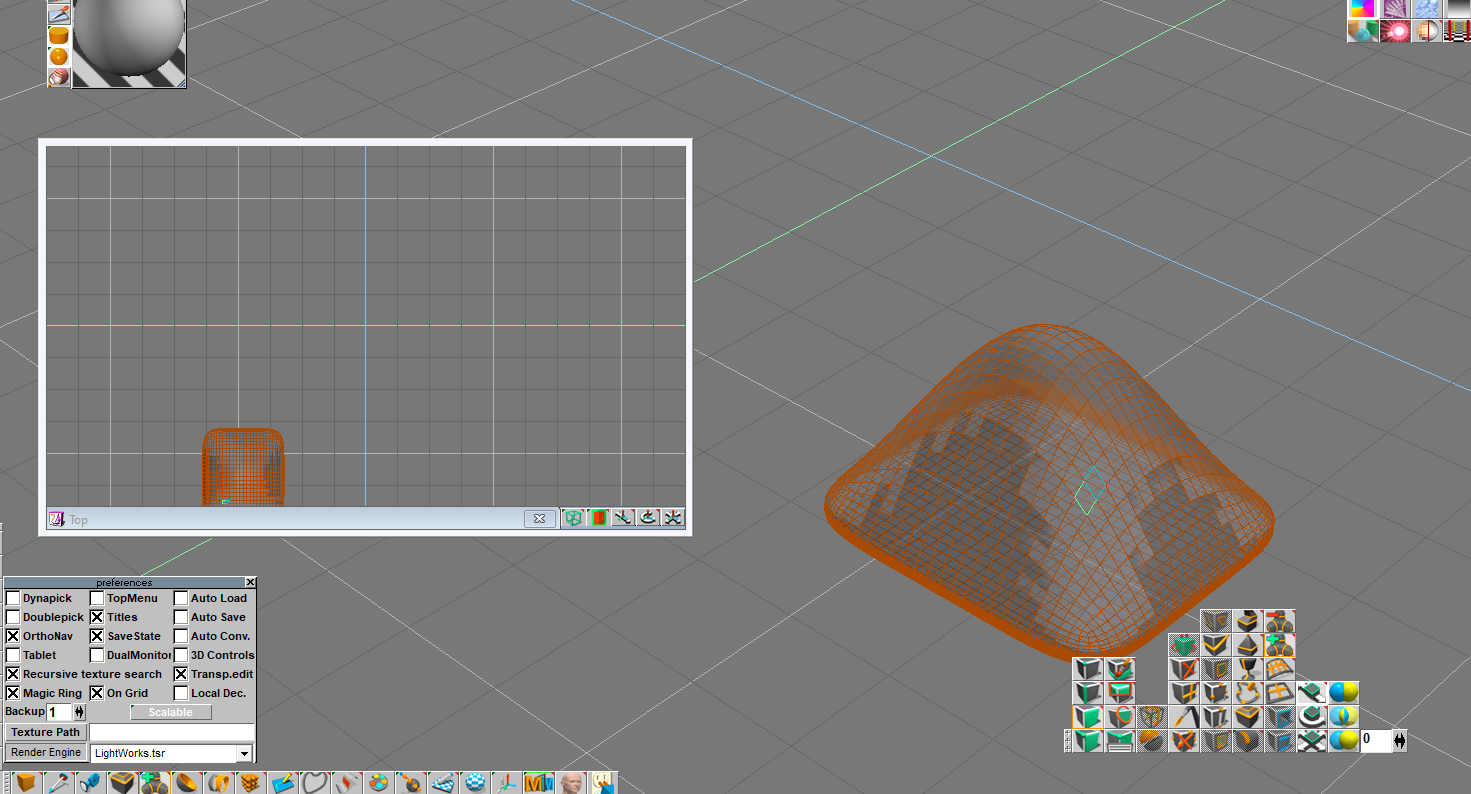

Object Mode
Preferences
3D Controls - Enabled

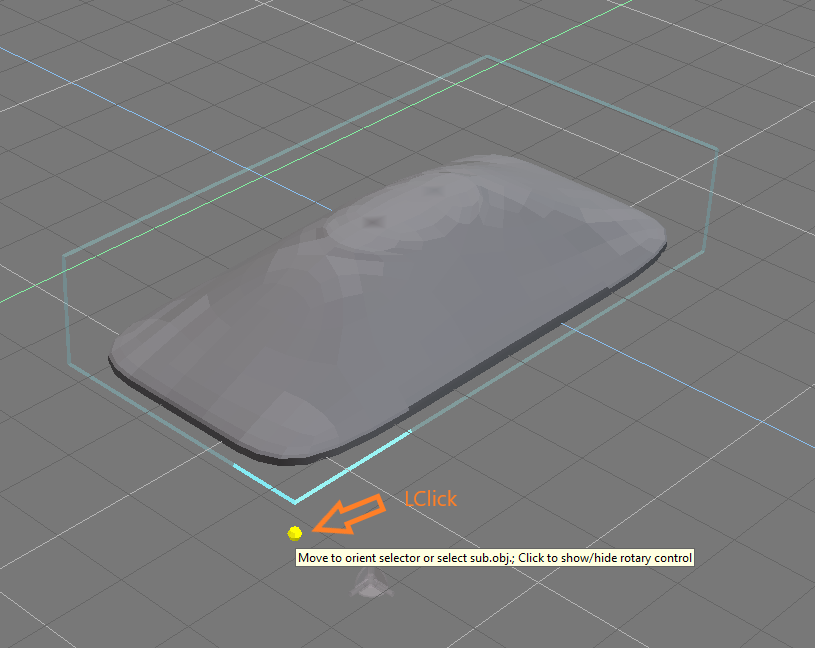

Step 1 - LClick Toggle Rotary Control
Object Mode.png
.

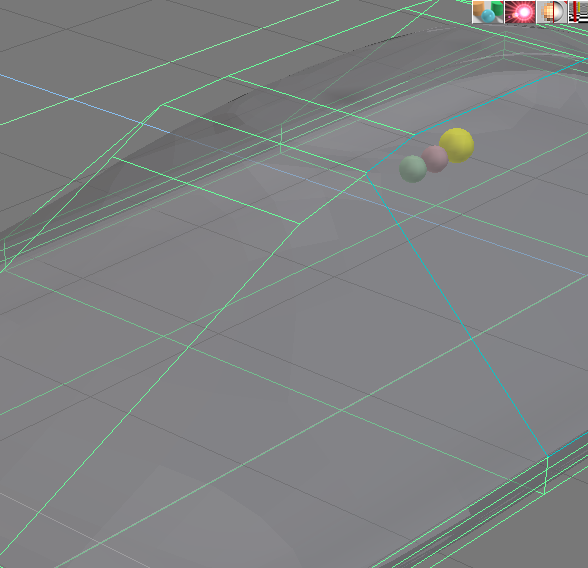

Step 2 - Enter Point Edit Mode - RClick object
Point Edit Mode

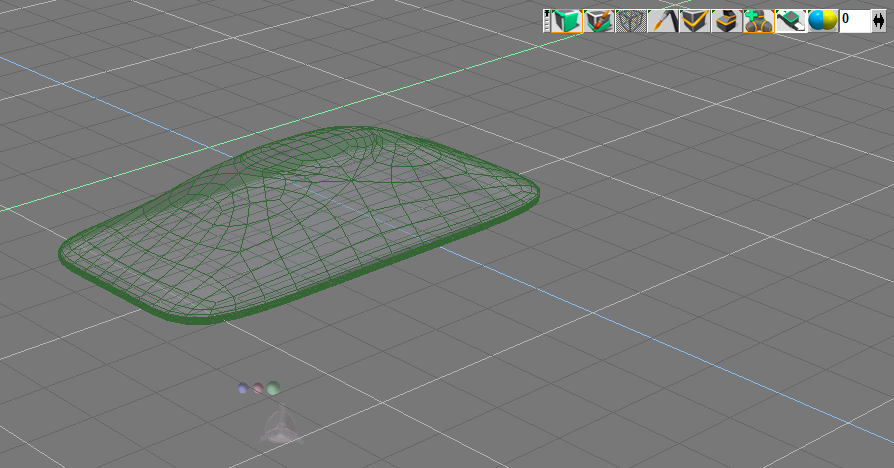

Edit Mode.png
The hidden SDS widget moves from inside of the object, to the bottom of the object
Where you are able to select the SDS layer
Edit: Changed pictures using your model_1.scn
User avatar
generalistic
Petty Officer Third Class
Posts: 16
Joined: 06 Jun 2024, 00:47
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by generalistic »

I recorded my failed attempt (see link).
User avatar
trueBlue
Captain
Posts: 5548
Joined: 06 Jul 2009, 22:50
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by trueBlue »

Bummer!
The only other things I can think of
1) File menu - Help - Tooltips "Toogle OFF"

2) Close trueSpace
Press and hold down your keyboard CTRL key and start trueSpace

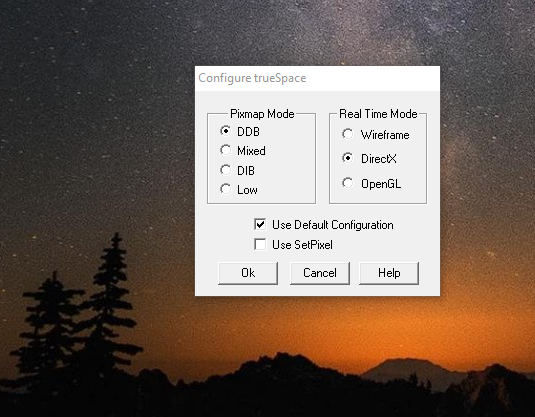

Use Default Configuration.png
.
Check - Use Default Configuration
Press [OK]

3) Try other options in the Configure trueSpace dialog
Wireframe

4) Use Workspace for modeling 'My preferred method'
Workspace's SDS is different from Model's SDS
Does not cross the Bridge and visa versa
No support for selecting different SDS Layers
Vertex and Edge weights
For me, Modeling in Workspace is far more elegant!

5) Close trueSpace
Go to: C:\trueSpace76\tS

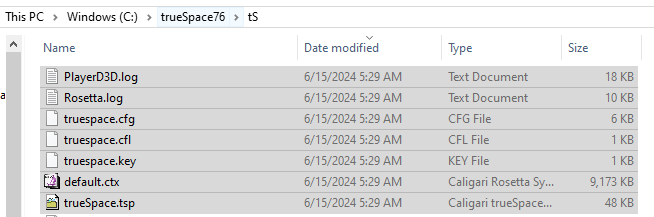

Delete these trueSpace files
Delete trueSpace files.png
.
Start trueSpace

6) Install DirectX 9
https://www.microsoft.com/en-us/downloa ... px?id=8109

7) Run DX Dialog
https://support.microsoft.com/en-us/win ... 92228dfd85
User avatar
generalistic
Petty Officer Third Class
Posts: 16
Joined: 06 Jun 2024, 00:47
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by generalistic »

I followed until step 3 and it worked!
thank you trueBlue!!
Attachments
User avatar
trueBlue
Captain
Posts: 5548
Joined: 06 Jul 2009, 22:50
Type the number ten into the box: 10

Re: Cannot edit SDS

Post by trueBlue »

:bananathumb:
User avatar
borgcone
Chief Petty Officer
Posts: 134
Joined: 06 May 2018, 21:09
Type the number ten into the box: 10
Location: Japan, or sometimes behind a borg cube

Re: Cannot edit SDS

Post by borgcone »

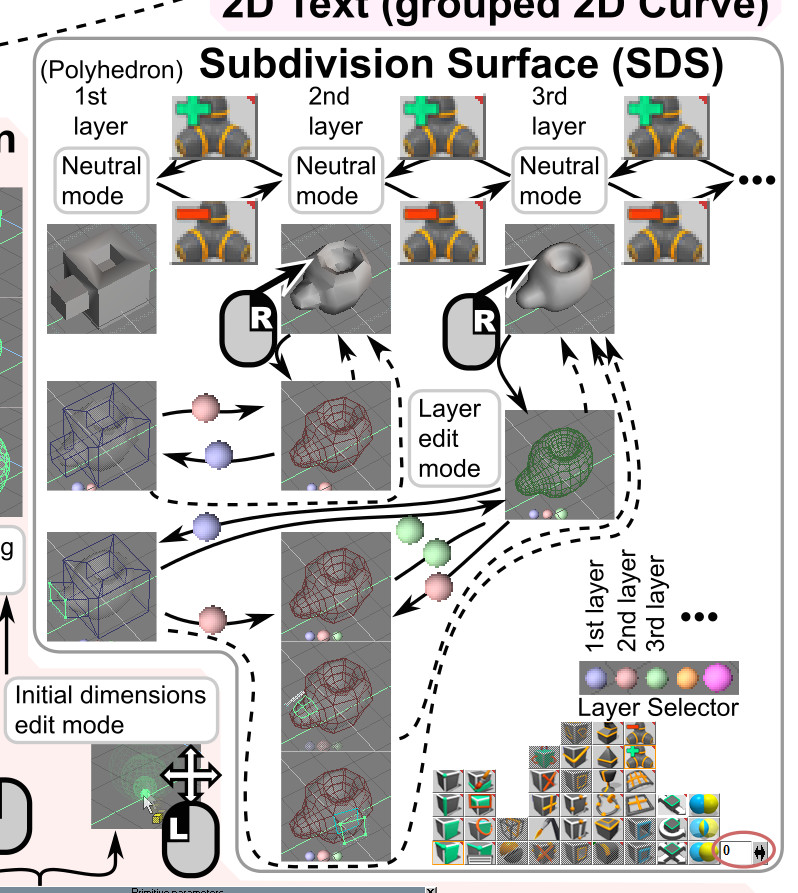

This quick card may be useful regarding colored spheres and state transitions. SDS is near the right-bottom corner of the card. Whole card: Quick card for Model side modeling, opinion plz
Some arrows may be pointing in the wrong direction. :shock:
