when using multiple light sources in order to create a global illumination-look (which I always try), it can sometimes be a pain to get certain shadows right. So I came up with this little trick. Instead of the entire pillar to cast shadows, I turned off shadow casting and placed dome like shapes inside these pillars with shadow casting on to cast soft and shorter shadows that look more natural in a room that is globally lit. I think the result is not comparable to real global illumination but the shadow trick does the job quite nicely.
Shadow trick
-
Buzz
- Chief Petty Officer
- Posts: 150
- Joined: 05 Jul 2009, 12:46
- Type the number ten into the box: 0
- Location: Netherlands
Shadow trick
Hi there folks,

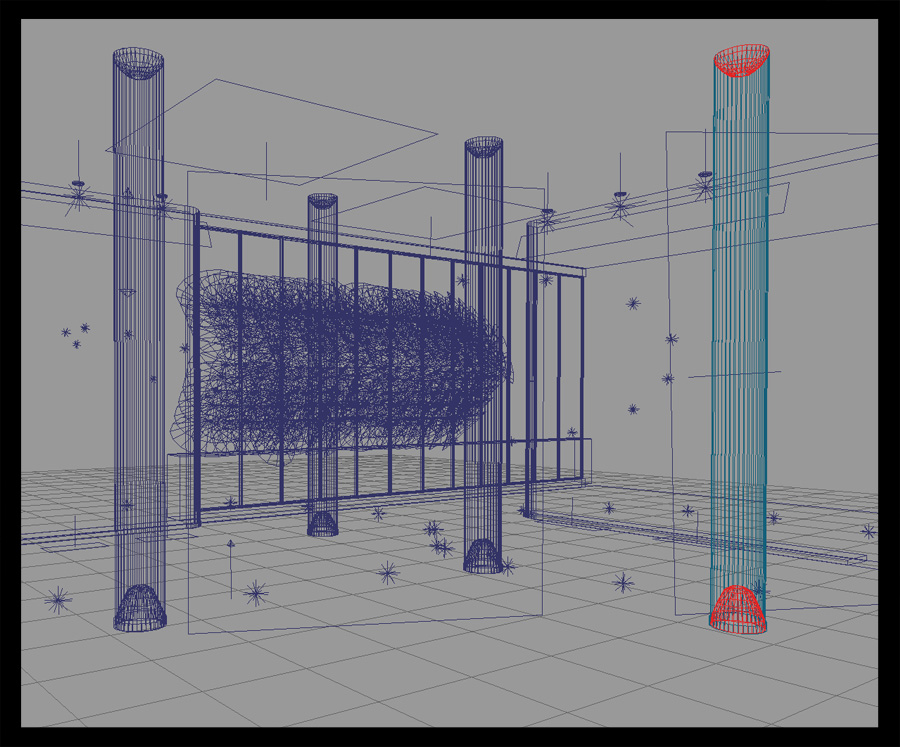

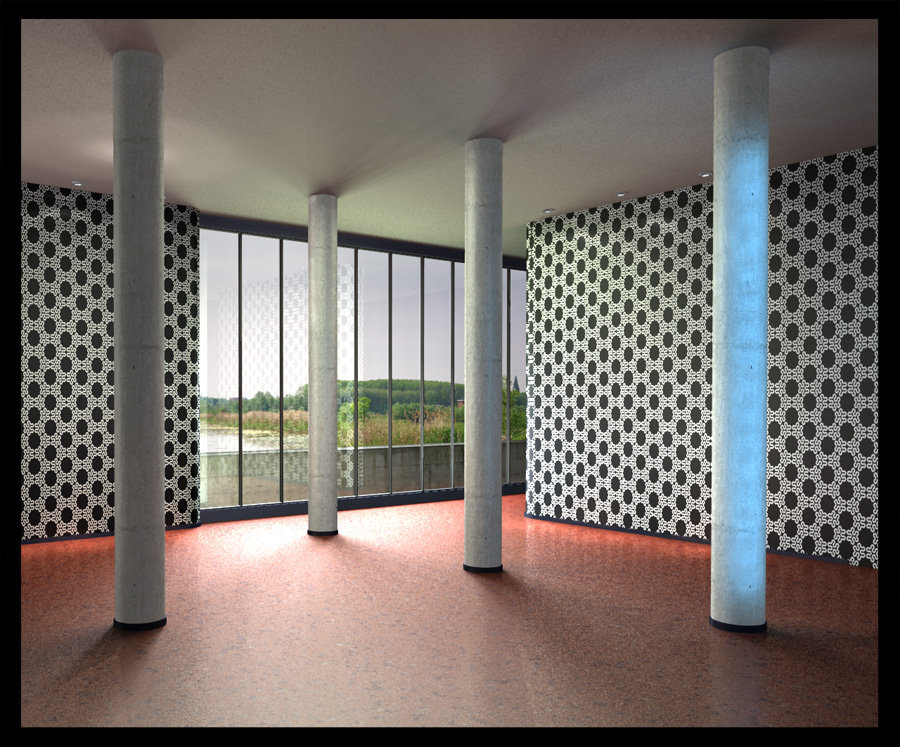

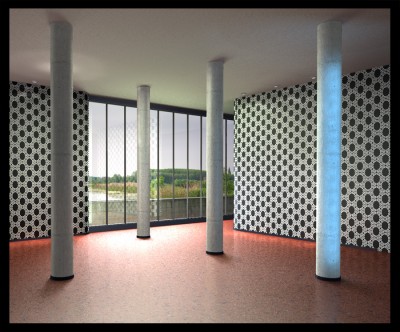

when using multiple light sources in order to create a global illumination-look (which I always try), it can sometimes be a pain to get certain shadows right. So I came up with this little trick. Instead of the entire pillar to cast shadows, I turned off shadow casting and placed dome like shapes inside these pillars with shadow casting on to cast soft and shorter shadows that look more natural in a room that is globally lit. I think the result is not comparable to real global illumination but the shadow trick does the job quite nicely.

when using multiple light sources in order to create a global illumination-look (which I always try), it can sometimes be a pain to get certain shadows right. So I came up with this little trick. Instead of the entire pillar to cast shadows, I turned off shadow casting and placed dome like shapes inside these pillars with shadow casting on to cast soft and shorter shadows that look more natural in a room that is globally lit. I think the result is not comparable to real global illumination but the shadow trick does the job quite nicely.
Last edited by Buzz on 27 Aug 2009, 19:36, edited 1 time in total.
-
LeonRegis
- Captain
- Posts: 1946
- Joined: 18 Aug 2009, 17:36
- Type the number ten into the box: 0
- Location: Brazil/Earth/Orion Arm/Milky Way/4th Dimension/This Universe/Multiverse???/Singularity???
Re: Shadow trick
You're the master of light Buzz
Great Work!!!
Great Work!!!
Be the change you want to see in the world. - Mohandas Gandhi
-
Accu
- Petty Officer First Class
- Posts: 78
- Joined: 21 Jul 2009, 18:00
Re: Shadow trick
Oh, my! And I thought I used many lights.
How long to render such a scene?
My biggest fake GI scene has 34 lights (and 126557 polygons) and it seems to take forever to render.
How long to render such a scene?
My biggest fake GI scene has 34 lights (and 126557 polygons) and it seems to take forever to render.
