Quadcopter design
As some of you have noticed in the w.i.p thread, I was working on a quadcopter.

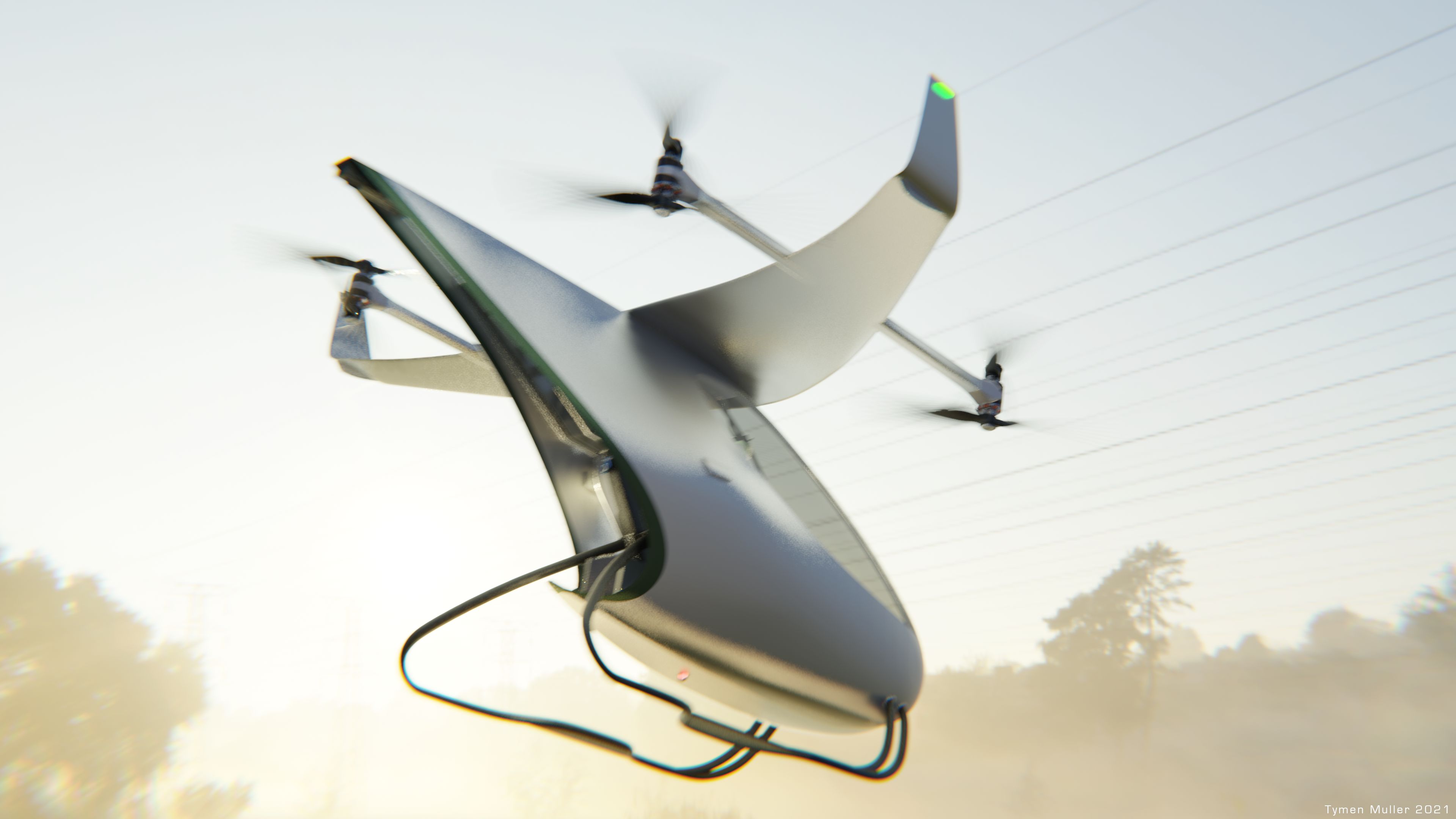

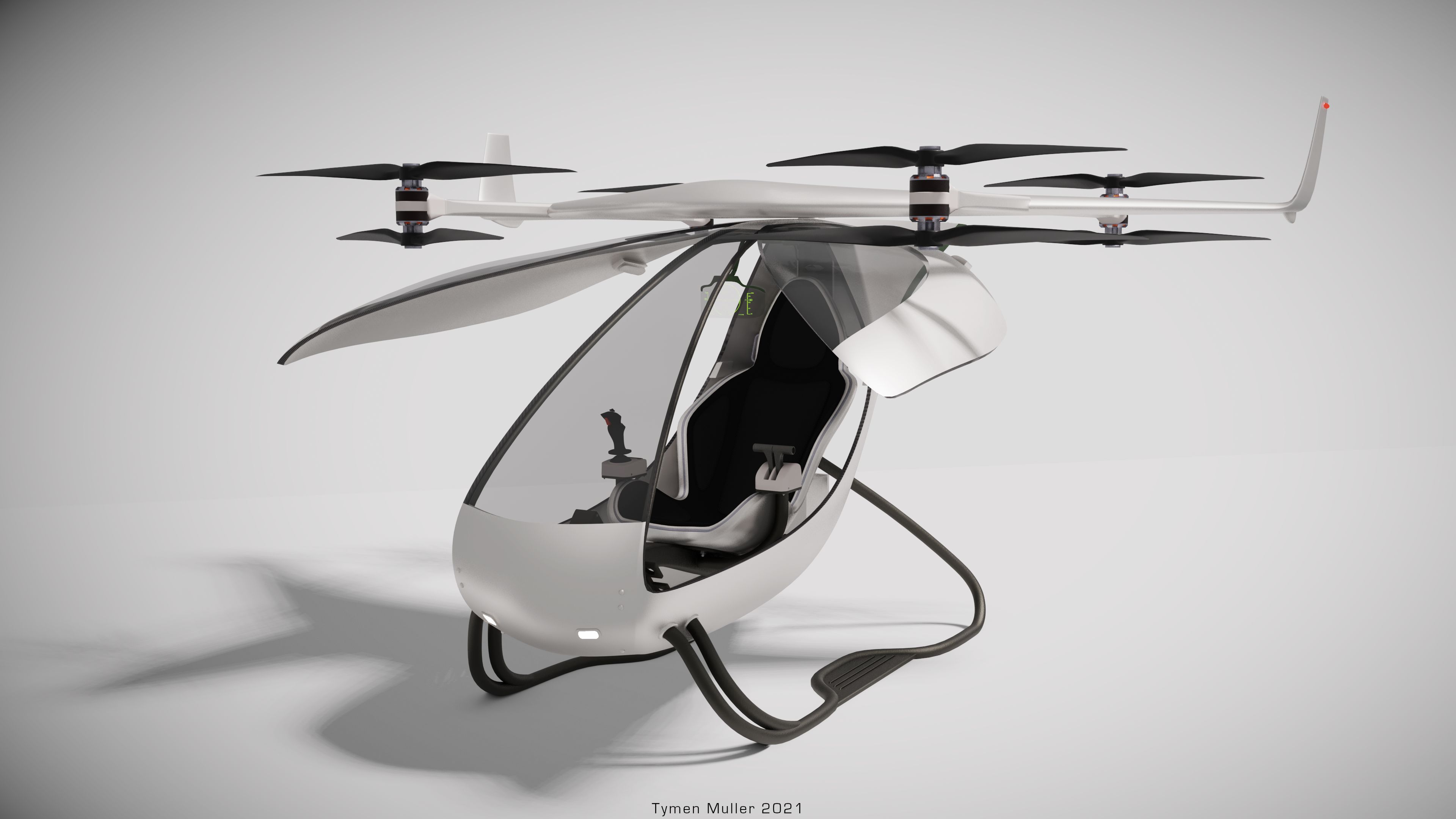

Well here it is finished:

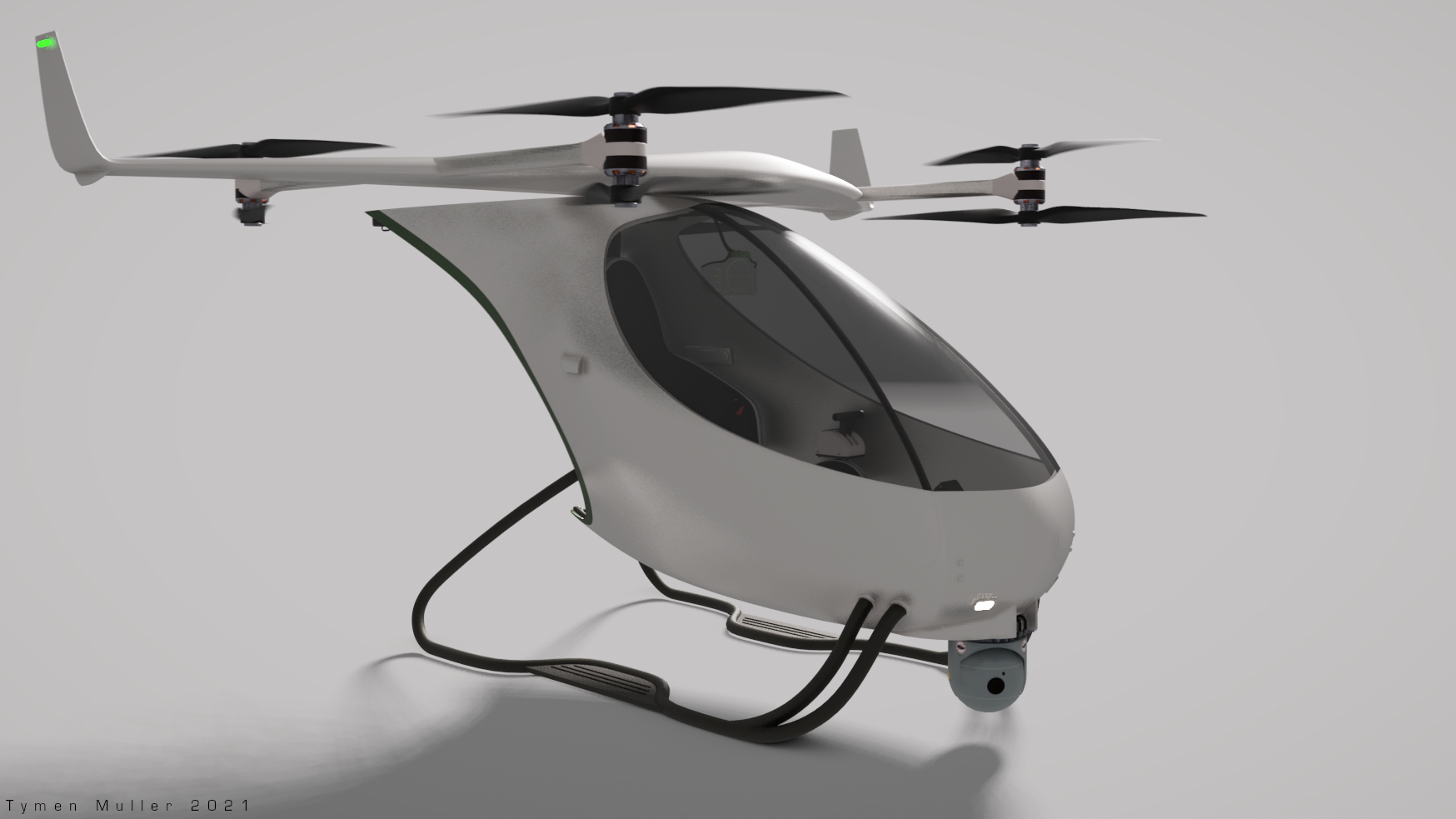

With Camera:
Sent to the client. They were happy with the result. Possible animation coming next.
Well here it is finished:
With Camera:
Sent to the client. They were happy with the result. Possible animation coming next.
-
MikomDude
- Captain
- Posts: 1930
- Joined: 04 Oct 2010, 11:12
- Type the number ten into the box: 0
- Location: The Hague, Netherlands
Re: Quadcopter design

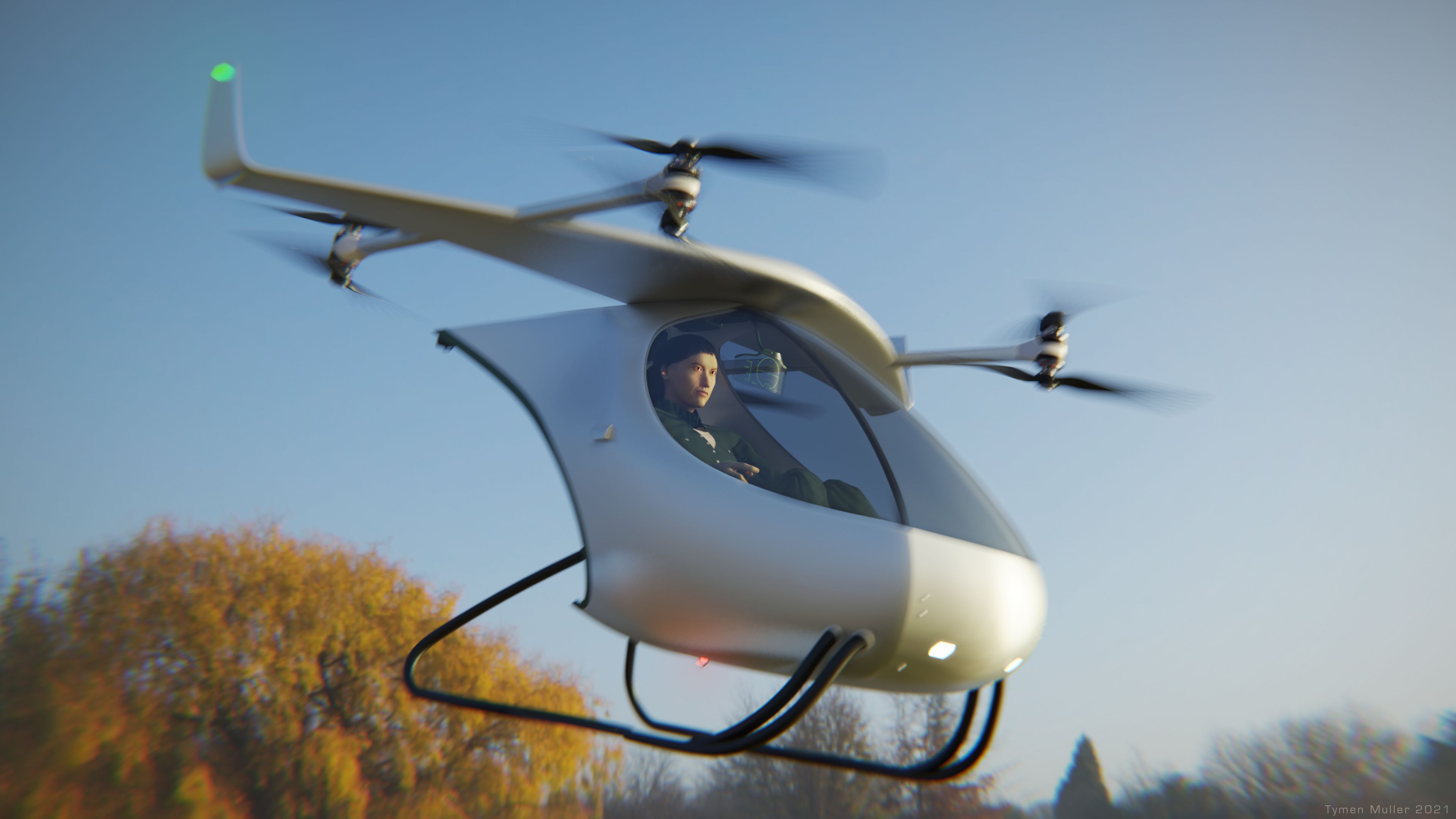

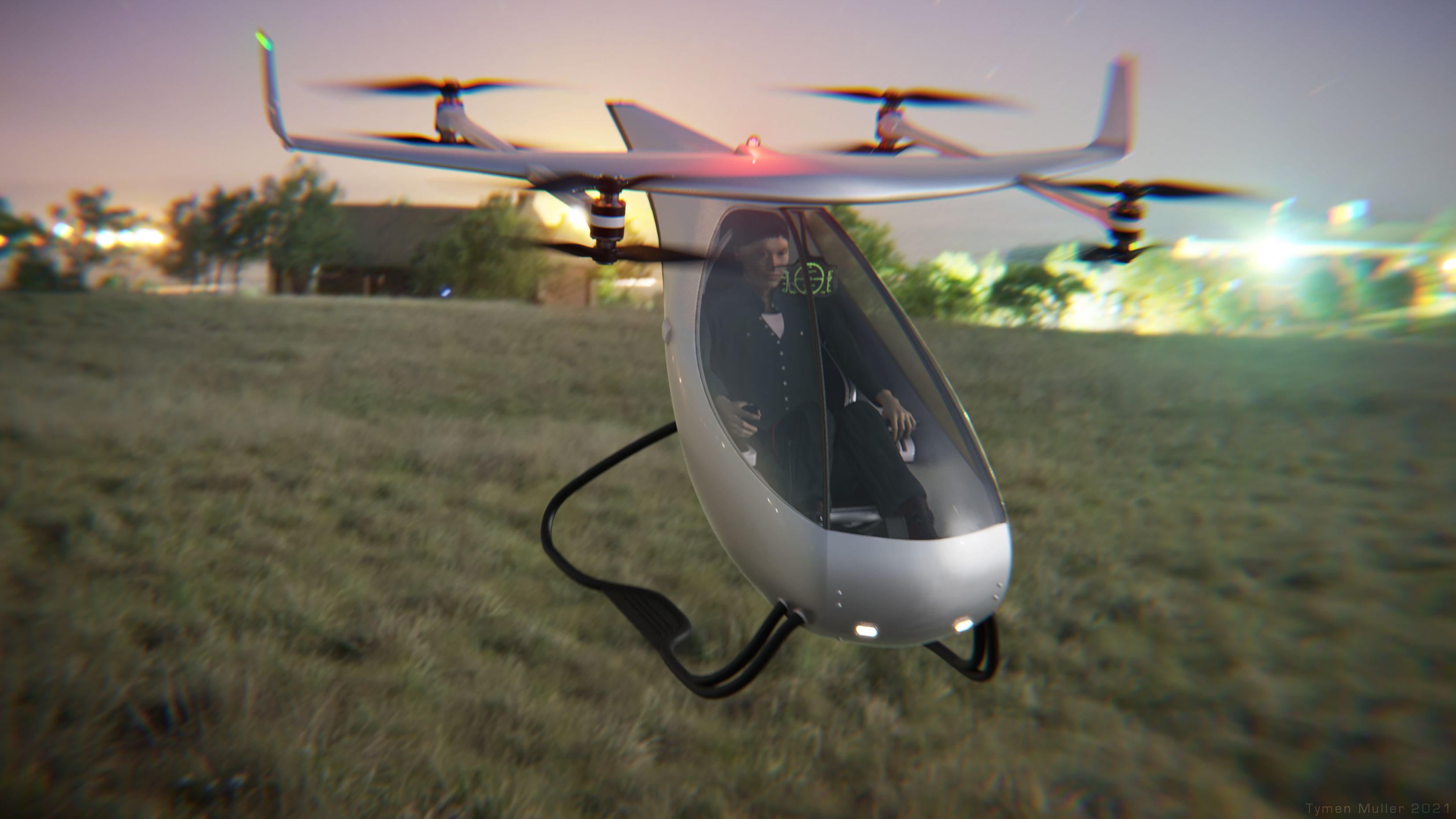

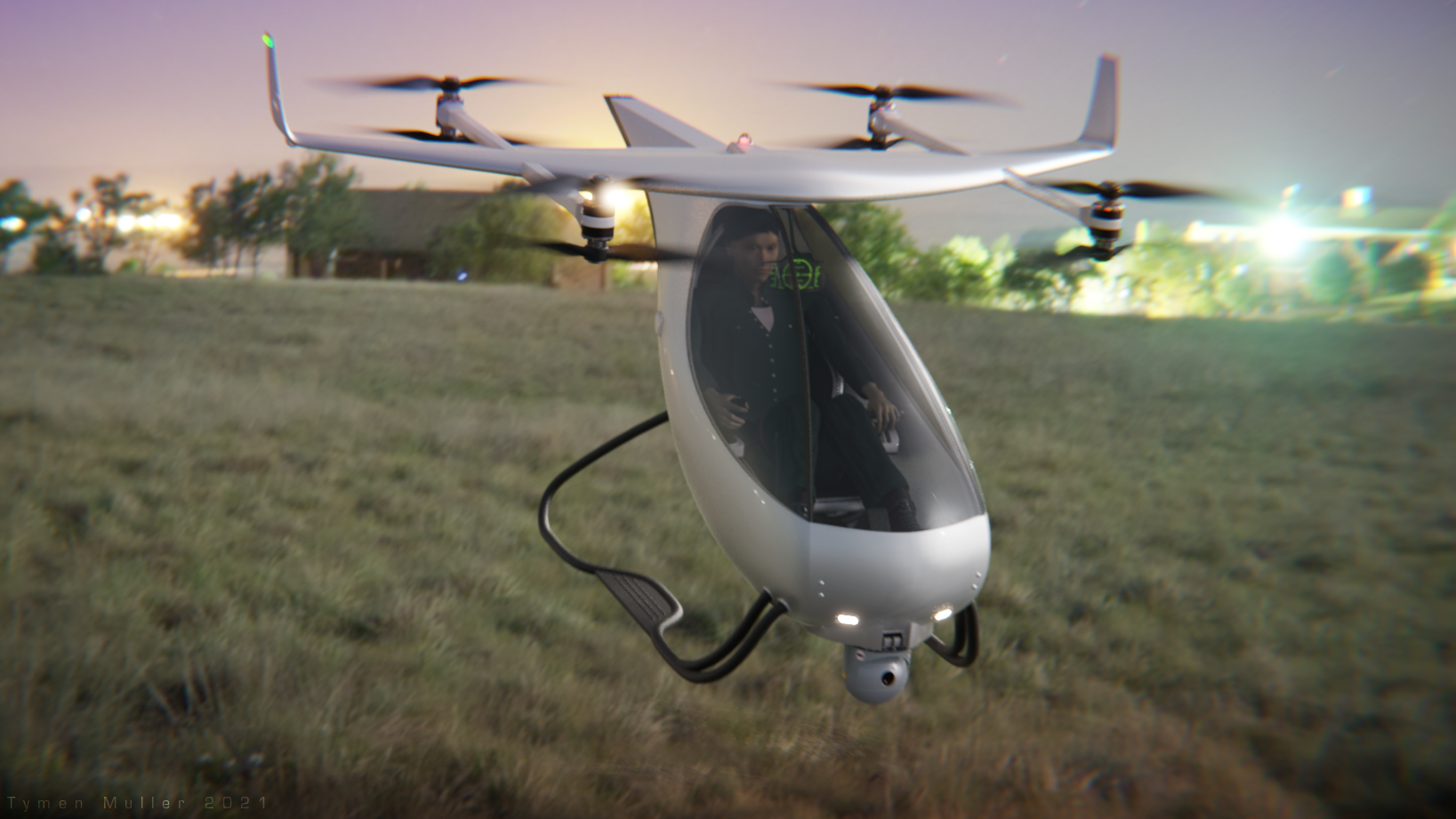

Final Animations:
-
trueBlue
- Captain
- Posts: 5548
- Joined: 06 Jul 2009, 22:50
- Type the number ten into the box: 10
Re: Quadcopter design
Excellent work!
But those Blades
@ pilots' shoulders!
Is this to scale?
But those Blades
@ pilots' shoulders!Is this to scale?
-
MikomDude
- Captain
- Posts: 1930
- Joined: 04 Oct 2010, 11:12
- Type the number ten into the box: 0
- Location: The Hague, Netherlands
Re: Quadcopter design
Thank you!trueBlue wrote: 22 Mar 2021, 21:37 Excellent work!
But those Blades
Is this to scale?

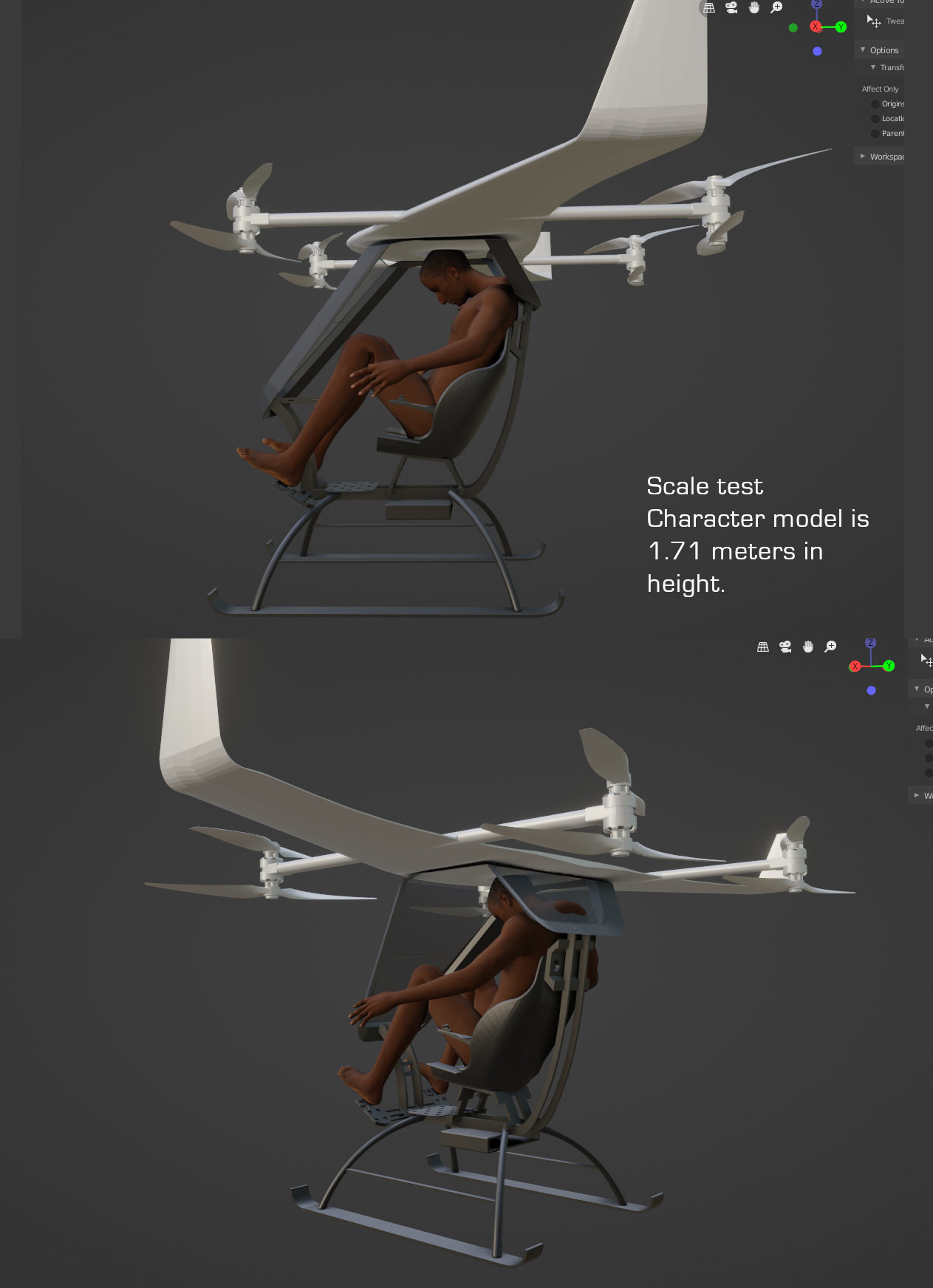

And yes actually, it's a very small craft. The design requirements were that it had to fit in a 3x3x2 meter box so they were looking for a very compact design indeed. The character in this scene is only of average male height (1.75 m tall).
Their original design didn't even allow for an adult to sit in it, so I had to get creative with the size limitations:
