clintonman · Post by **clintonman** » 25 Jul 2021, 17:29

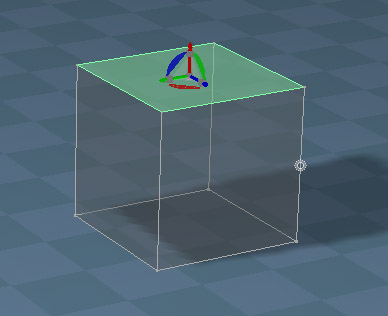

: OriginWidget.jpg (39.48 KiB) Viewed 2987 times

Origin indicator on the far left edge of the cube.

This was originally developed to make the workspace NURBS edges a little bit more like handles.

Use the ctrl button plus LMB or RMB on the widget cubes to scale from the origin instead of the center of the selection or object.

PE widget - ctrl + LMB the center sphere to set the origin to the selection.

Installation is not permanent.
The scripts have no safety checks for multiple runs - only run them one time.
Reset default context to remove the changes.

trueBlue · Post by **trueBlue** » 25 Jul 2021, 22:16

Cool, I was wondering if the other widgets could have this Mesh Origin indicator
One little caveat...
When you MMB + Drag the widget's Sphere that moves the widget, the Mesh Origin indicator moves with it

clintonman · Post by **clintonman** » 25 Jul 2021, 22:46

trueBlue wrote: 25 Jul 2021, 22:16 Cool, I was wondering if the other widgets could have this Mesh Origin indicator
One little caveat...
When you MMB + Drag the widget's Sphere that moves the widget, the Mesh Origin indicator moves with it

Well, don't see any way around that. I'll make a note, thanks.

trueBlue · Post by **trueBlue** » 26 Jul 2021, 00:16

I tried to implement the Ctrl + LMB gesture in the Centered Object Navigation Widget/Boxes minus the Origin object
It is not working
Does it it not support this?

clintonman · Post by **clintonman** » 26 Jul 2021, 00:27

trueBlue wrote: 26 Jul 2021, 00:16 I tried to implement the Ctrl + LMB gesture in the Centered Object Navigation Widget/Boxes minus the Origin object
It is not working
Does it it not support this?

It works with lmb and rmb already.

Edit: hm maybe something is happening, it does the scale without the ctrl...

Nope it's ok, must have been something else.
Reset default context
made sure the centered nav widget was active
ran the script and it works as expected

trueBlue · Post by **trueBlue** » 26 Jul 2021, 02:04

clintonman wrote: 26 Jul 2021, 00:27
trueBlue wrote: 26 Jul 2021, 00:16 I tried to implement the Ctrl + LMB gesture in the Centered Object Navigation Widget/Boxes minus the Origin object
It is not working
Does it it not support this?
It works with lmb and rmb already.

Edit: hm maybe something is happening, it does the scale without the ctrl...

Nope it's ok, must have been something else.
Reset default context
made sure the centered nav widget was active
ran the script and it works as expected

Thank you, that did it!

trueBlue · Post by **trueBlue** » 26 Jul 2021, 02:07

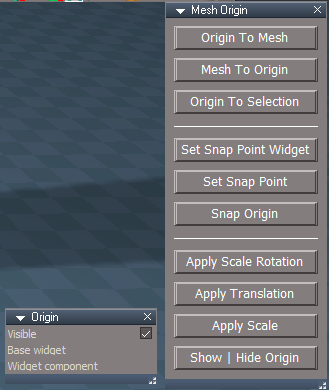

Origin
Exported the Visible aspect of the Static widget controller

: Mesh Origin.png (33.58 KiB) Viewed 2959 times

Mesh Origin
Add
Hide | Show Origin

Code: Select all

if(Node.ConExists("/Widgets/Select/Default object navigation widget/Origin", "Visible")) {
RsTool.ToggleValue("/Widgets/Select/Default object navigation widget/Origin/Visible")
}
if(Node.ConExists("/Widgets/Edit/Point edit widget/Origin", "Visible")) {
RsTool.ToggleValue("/Widgets/Edit/Point edit widget/Origin/Visible")
}
RsTool.Arrow();

clintonman · Post by **clintonman** » 26 Jul 2021, 02:41

trueBlue wrote: 26 Jul 2021, 02:07 Origin
Exported the Visible aspect of the Static widget controller
Mesh Origin.png

Mesh Origin
Add
Hide | Show Origin
Code: Select all
if(Node.ConExists("/Widgets/Select/Default object navigation widget/Origin", "Visible")) {
RsTool.ToggleValue("/Widgets/Select/Default object navigation widget/Origin/Visible")
}
if(Node.ConExists("/Widgets/Edit/Point edit widget/Origin", "Visible")) {
RsTool.ToggleValue("/Widgets/Edit/Point edit widget/Origin/Visible")
}
RsTool.Arrow();

Very nice, what does the RsTool.Arrow() do?

trueBlue · Post by **trueBlue** » 26 Jul 2021, 03:50

That is the Object tool command
I used it to refresh the obj widget

clintonman · Post by **clintonman** » 26 Jul 2021, 05:04

trueBlue wrote: 26 Jul 2021, 03:50 That is the Object tool command
I used it to refresh the obj widget

I think I'll skip that part of it.
If you have a group member selected it will be deselected and the group will be selected.
It also exits pe mode.

Maybe you can use
Widgets.ActivateDefaultWidget(); for object
to refresh the widgets

Edit: just did a test and it works. Updates the widget without losing/changing selection. It just needs to only be run in object mode, not pe mode. Nothing needed for pe widget since it updates as soon as you make a new selection.

trueBlue · Post by **trueBlue** » 07 Aug 2021, 23:03

clintonman wrote: 26 Jul 2021, 05:04
trueBlue wrote: 26 Jul 2021, 03:50 That is the Object tool command
I used it to refresh the obj widget
I think I'll skip that part of it.
If you have a group member selected it will be deselected and the group will be selected.
It also exits pe mode.

Maybe you can use
Widgets.ActivateDefaultWidget(); for object
to refresh the widgets

Edit: just did a test and it works. Updates the widget without losing/changing selection. It just needs to only be run in object mode, not pe mode. Nothing needed for pe widget since it updates as soon as you make a new selection.

I improved the Show | Hide Origin 'Indicator' script
Can you try this and see if it is a keeper?

Code: Select all

var util = System.CreateDO("Clintons3D Package/Utility functions");
if(Node.ConExists("/Widgets/Select/Default object navigation widget/Origin", "Visible")) {
RsTool.ToggleValue("/Widgets/Select/Default object navigation widget/Origin/Visible")

if(Node.ConExists("/Widgets/Select/Default object navigation widgetONW1/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW1/Origin/Visible")

if(Node.ConExists("/Widgets/Select/Default object navigation widgetONW2/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW2/Origin/Visible")

if(Node.ConExists("/Widgets/Select/Default object navigation widgetONW3/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW3/Origin/Visible")

if(Node.ConExists("/Widgets/Select/Default object navigation widgetONW4/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW4/Origin/Visible")

if(!Node.ConExists(Node.Selection(), "Selection"))
Widgets.ActivateDefaultWidget()
}

if(Node.ConExists("/Widgets/Edit/Point edit widget/Origin", "Visible")) {
RsTool.ToggleValue("/Widgets/Edit/Point edit widget/Origin/Visible")

if(Node.ConExists("/Widgets/Edit/Point edit mode widgetPEW1/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Edit/Point edit mode widgetPEW1/Origin/Visible")

if(Node.ConExists("/Widgets/Edit/Point edit mode widgetPEW2/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Edit/Point edit mode widgetPEW2/Origin/Visible")

if(Node.ConExists("/Widgets/Edit/Point edit mode widgetPEW3/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Edit/Point edit mode widgetPEW3/Origin/Visible")
}

if(Node.Value("/Widgets/Edit/Point edit widget/Origin", "Visible") == true) {
util.SetStatusMessage("Origin indicator is Visible", 5000);
if(Node.ConExists(Node.Selection(), "Selection"))
MeshModifiers.InvertSelection('');
MeshModifiers.PeDeselect('');
}

if(Node.Value("/Widgets/Edit/Point edit widget/Origin", "Visible") == false) {
util.SetStatusMessage("Origin indicator is Hidden", 5000);
MeshModifiers.InvertSelection('');
MeshModifiers.PeDeselect('')
}

One thing though, since this script toggles the "Visible" attribute, all widgets have to be initially in the same state

clintonman · Post by **clintonman** » 08 Aug 2021, 00:55

trueBlue wrote: 07 Aug 2021, 23:03

clintonman wrote: 26 Jul 2021, 05:04
trueBlue wrote: 26 Jul 2021, 03:50 That is the Object tool command
I used it to refresh the obj widget
I think I'll skip that part of it.
If you have a group member selected it will be deselected and the group will be selected.
It also exits pe mode.

Maybe you can use
Widgets.ActivateDefaultWidget(); for object
to refresh the widgets

Edit: just did a test and it works. Updates the widget without losing/changing selection. It just needs to only be run in object mode, not pe mode. Nothing needed for pe widget since it updates as soon as you make a new selection.

I improved the Show | Hide Origin 'Indicator' script
Can you try this and see if it is a keeper?

Code: Select all

var util = System.CreateDO("Clintons3D Package/Utility functions");
if(Node.ConExists("/Widgets/Select/Default object navigation widget/Origin", "Visible")) {
RsTool.ToggleValue("/Widgets/Select/Default object navigation widget/Origin/Visible")

if(Node.ConExists("/Widgets/Select/Default object navigation widgetONW1/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW1/Origin/Visible")

if(Node.ConExists("/Widgets/Select/Default object navigation widgetONW2/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW2/Origin/Visible")

if(Node.ConExists("/Widgets/Select/Default object navigation widgetONW3/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW3/Origin/Visible")

if(Node.ConExists("/Widgets/Select/Default object navigation widgetONW4/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW4/Origin/Visible")

if(!Node.ConExists(Node.Selection(), "Selection"))
Widgets.ActivateDefaultWidget()
}

if(Node.ConExists("/Widgets/Edit/Point edit widget/Origin", "Visible")) {
RsTool.ToggleValue("/Widgets/Edit/Point edit widget/Origin/Visible")

if(Node.ConExists("/Widgets/Edit/Point edit mode widgetPEW1/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Edit/Point edit mode widgetPEW1/Origin/Visible")

if(Node.ConExists("/Widgets/Edit/Point edit mode widgetPEW2/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Edit/Point edit mode widgetPEW2/Origin/Visible")

if(Node.ConExists("/Widgets/Edit/Point edit mode widgetPEW3/Origin", "Visible"))
RsTool.ToggleValue("/Widgets/Edit/Point edit mode widgetPEW3/Origin/Visible")
}

if(Node.Value("/Widgets/Edit/Point edit widget/Origin", "Visible") == true) {
util.SetStatusMessage("Origin indicator is Visible", 5000);
if(Node.ConExists(Node.Selection(), "Selection"))
MeshModifiers.InvertSelection('');
MeshModifiers.PeDeselect('');
}

if(Node.Value("/Widgets/Edit/Point edit widget/Origin", "Visible") == false) {
util.SetStatusMessage("Origin indicator is Hidden", 5000);
MeshModifiers.InvertSelection('');
MeshModifiers.PeDeselect('')
}

One thing though, since this script toggles the "Visible" attribute, all widgets have to be initially in the same state

This one only toggles the active widgets and sets the non-active widgets.
Does not lose point edit selection.
Reduced time of the point edit widget message. This doesn't work well and I don't think it's even needed really, but 5 seconds was too long for an instantaneous change and if you run it too often(spamming it to turn off and on constantly) only the "hidden" message shows.

Code: Select all

// Execute
// Called to execute the command
function Execute(params)
{
	var util = System.CreateDO("Clintons3D Package/Utility functions");

	if (Node.ConExists("/Widgets/Select/Default object navigation widget/Origin", "Visible")) {
		var isVisible = !Node.Value("/Widgets/Select/Default object navigation widget/Origin", "Visible");

		RsTool.ToggleValue("/Widgets/Select/Default object navigation widget/Origin/Visible")

		if (Node.ConExists("/Widgets/Select/Default object navigation widgetONW1/Origin", "Visible"))
			// RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW1/Origin/Visible")
			util.SetNodeValueInt("/Widgets/Select/Default object navigation widgetONW1/Origin", "Visible", isVisible);

		if (Node.ConExists("/Widgets/Select/Default object navigation widgetONW2/Origin", "Visible"))
			// RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW2/Origin/Visible")
			util.SetNodeValueInt("/Widgets/Select/Default object navigation widgetONW2/Origin", "Visible", isVisible);

		if (Node.ConExists("/Widgets/Select/Default object navigation widgetONW3/Origin", "Visible"))
			// RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW3/Origin/Visible")
			util.SetNodeValueInt("/Widgets/Select/Default object navigation widgetONW3/Origin", "Visible", isVisible);

		if (Node.ConExists("/Widgets/Select/Default object navigation widgetONW4/Origin", "Visible"))
			// RsTool.ToggleValue("/Widgets/Select/Default object navigation widgetONW4/Origin/Visible")
			util.SetNodeValueInt("/Widgets/Select/Default object navigation widgetONW4/Origin", "Visible", isVisible);

		if (!Node.ConExists(Node.Selection(), "Selection"))
			Widgets.ActivateDefaultWidget();
	}

	if (Node.ConExists("/Widgets/Edit/Point edit widget/Origin", "Visible")) {
		isVisible = !Node.Value("/Widgets/Edit/Point edit widget/Origin", "Visible");

		RsTool.ToggleValue("/Widgets/Edit/Point edit widget/Origin/Visible")

		if (Node.ConExists("/Widgets/Edit/Point edit mode widgetPEW1/Origin", "Visible"))
			// RsTool.ToggleValue("/Widgets/Edit/Point edit mode widgetPEW1/Origin/Visible")
			util.SetNodeValueInt("/Widgets/Edit/Point edit mode widgetPEW1/Origin", "Visible", isVisible);

		if (Node.ConExists("/Widgets/Edit/Point edit mode widgetPEW2/Origin", "Visible"))
			// RsTool.ToggleValue("/Widgets/Edit/Point edit mode widgetPEW2/Origin/Visible")
			util.SetNodeValueInt("/Widgets/Edit/Point edit mode widgetPEW2/Origin", "Visible", isVisible);

		if (Node.ConExists("/Widgets/Edit/Point edit mode widgetPEW3/Origin", "Visible"))
			// RsTool.ToggleValue("/Widgets/Edit/Point edit mode widgetPEW3/Origin/Visible")
			util.SetNodeValueInt("/Widgets/Edit/Point edit mode widgetPEW3/Origin", "Visible", isVisible);

			if (Node.ConExists(Node.Selection(), "Selection")){
				MeshModifiers.InvertSelection('');
				MeshModifiers.InvertSelection('');
			}

		if (Node.Value("/Widgets/Edit/Point edit widget/Origin", "Visible") == true) {
			// util.SetStatusMessage("Origin indicator is Visible", 5000);
			util.SetStatusMessage("Origin indicator is Visible", 2000);
			// if (Node.ConExists(Node.Selection(), "Selection"))
			// 	MeshModifiers.InvertSelection('');
			// MeshModifiers.PeDeselect('');
		}

		if (Node.Value("/Widgets/Edit/Point edit widget/Origin", "Visible") == false) {
			// util.SetStatusMessage("Origin indicator is Hidden", 5000);
			util.SetStatusMessage("Origin indicator is Hidden", 2000);
			// MeshModifiers.InvertSelection('');
			// MeshModifiers.PeDeselect('')
		}
	}

}

trueBlue · Post by **trueBlue** » 08 Aug 2021, 01:24

Much better!
Probably do not need the status message when showing the Origin indicator

Code: Select all

//util.SetStatusMessage("Origin indicator is Visible", 2000);

United3dArtists Archive

Origin Widgets

Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets

Re: Origin Widgets
