Shear
-
Shell1850
- Chief Petty Officer
- Posts: 135
- Joined: 21 May 2009, 21:44
Shear
I am looking at IRdMatrixfDisp Interface. What do they mean by Shear?
-
froo
- Captain
- Posts: 2554
- Joined: 22 May 2009, 12:13
Re: Shear
Here's a pretty good example Shell1850:
http://cs.fit.edu/~wds/classes/cse5255/ ... shear.html"
In a sense, it's a form of non-uniform scaling.
If you scale a cube Uniformly, for example, then you end up with a larger cube.
But if you Shear a cube, say, along the z-axis, then you end up with a larger cube that is stretched
in the x and y axes.
I believe that is a correct statement. Please correct me if I am wrong.
http://cs.fit.edu/~wds/classes/cse5255/ ... shear.html"
In a sense, it's a form of non-uniform scaling.
If you scale a cube Uniformly, for example, then you end up with a larger cube.
But if you Shear a cube, say, along the z-axis, then you end up with a larger cube that is stretched
in the x and y axes.
I believe that is a correct statement. Please correct me if I am wrong.
-
trueBlue
- Captain
- Posts: 5548
- Joined: 06 Jul 2009, 22:50
- Type the number ten into the box: 10
Re: Shear
Isn't more like Skew?

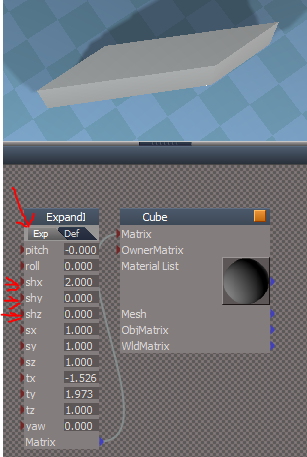

If you expand an object's Matrix and change to the EXP aspect you will see:
shx
shy
shz
If you expand an object's Matrix and change to the EXP aspect you will see:
shx
shy
shz
