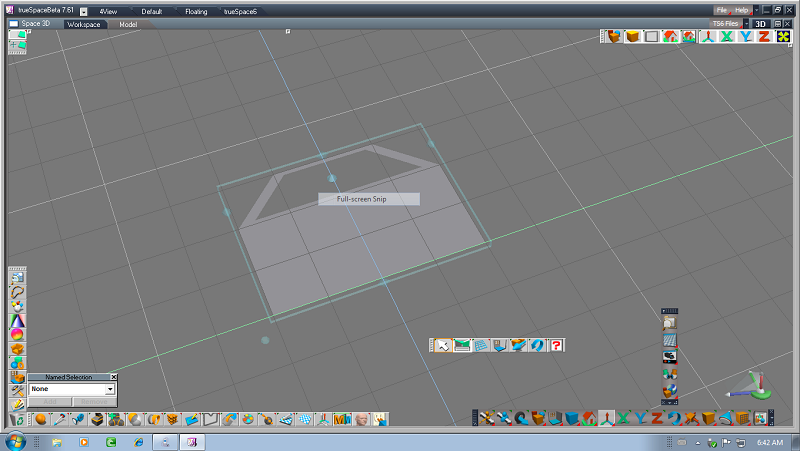

hi i'm trying to draw a sort of raised neck in an opening in an object , please see pics , this pic is the end of object laid flat before i sweep up ,sorry pic is not very good hope it gives you an idea
regards mike
please help still struggling
-
automike
- Petty Officer Second Class
- Posts: 22
- Joined: 11 Nov 2009, 19:06

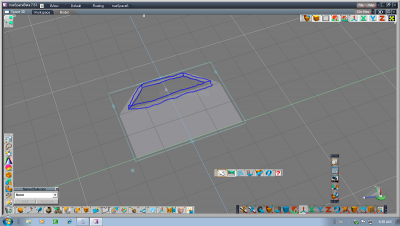

please help still struggling
- Attachments
-
-
-
v3rd3
- Lieutenant Commander
- Posts: 1191
- Joined: 21 May 2009, 20:04
Re: please help still struggling
Can you tell us a bit more about what you are trying to construct? I think we might show you a slightly different method to get your result.
It appears that you are working with a plane with a hole in the geometry where using a cube with a few sweeps would do.
Let us know.
It appears that you are working with a plane with a hole in the geometry where using a cube with a few sweeps would do.
Let us know.
-
fahembree
- Chief Petty Officer
- Posts: 108
- Joined: 22 May 2009, 02:28
Re: please help still struggling

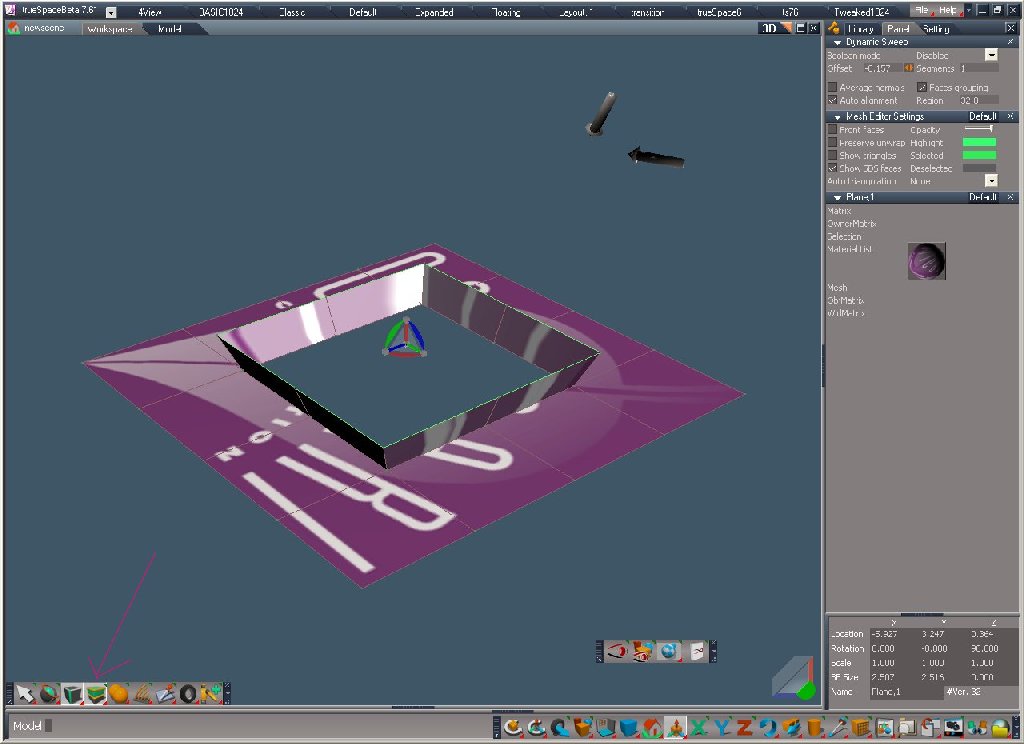

It looks like you are trying to sweep the edges of the opening and the easiest way to do that is to go to workspace and select the edges and use the dynamic sweep tool. You can't sweep edges in model side unless you use a plugin.
