TransKim · Post by **TransKim** » 07 Jun 2010, 07:02

Hullo once again,

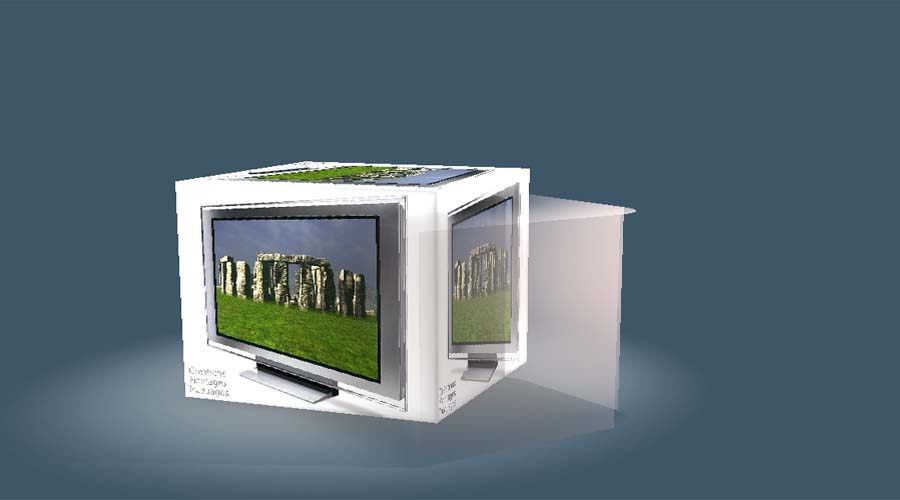

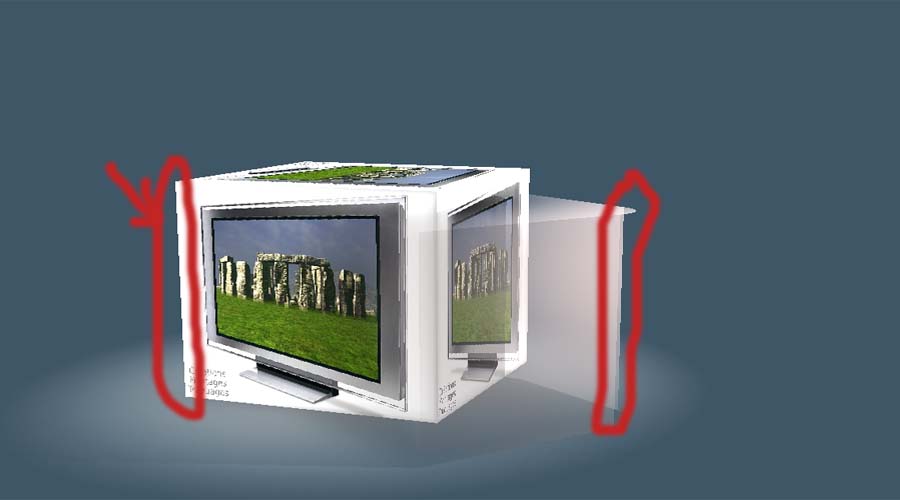

I need to render my image with straight corners, like the images i find on Design Devil s' header image on the home page. How can I achieve that ?

am using TS 7.61 modeler using Lightworks.

v3rd3 · Post by **v3rd3** » 07 Jun 2010, 07:32

I am not entirely sure I understand your request. If you want to have the vertical lines going straight up and down I suggest you switch your camera to an orthogonal view before you render. This will take the perspective out of the image.

You might have to rotate your objects a bit to get the shot that you want.

Good hunting.

TransKim · Post by **TransKim** » 07 Jun 2010, 07:44

Thanks v3rd3 I have tried to rotate the objects plus the camera but I cant seem to get what I want. any other possible way ?

Buzz · Post by **Buzz** » 07 Jun 2010, 08:41

Transkim,

I saw that you're not using the right settings for a good render. Antialising is what you need to get the lines straight.

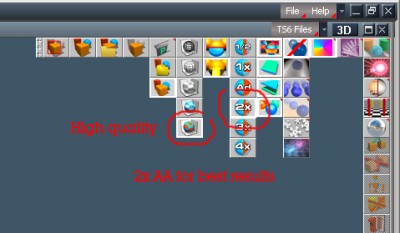

On the image you can see how to change that.

Success.

marcel · Post by **marcel** » 07 Jun 2010, 12:53

What do you want to do why my image mapped on the cube? It is from my web site.
http://www.crea-vision.fr/html/animatio ... ations.htm
No problem if it is for a personnal use.

TransKim · Post by **TransKim** » 11 Jun 2010, 08:30

Hullo marcel,

Iam using your image for personnal use and practice not for commercial use sorry. am going to change to my own image created by me. thanks

TransKim · Post by **TransKim** » 12 Jun 2010, 13:13

Thanks Buzz.

my jugged corners are a mystery now
